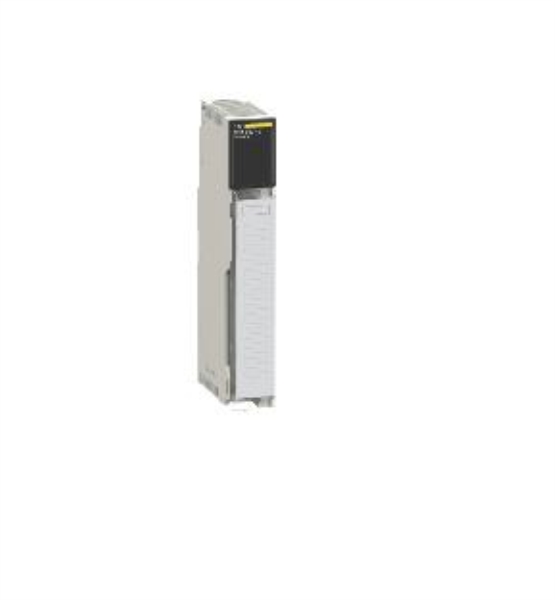

INTERBUS MASTER MODULE GENERATION 4 MODICON QUANTUM - PCP V2.0
Available
Free Shipping
2 Year warranty
| Part Number | 140NOA62200 |
| Manufacturer | Schneider Electric |
| Type | I/O Modules |
| Model # | 140-NOA-622-00 |
| Warranty | 2 Year |
| Module format | Standard |
| Product or component type | Interbus master module |
| Software designation | Concept |
| ProWORX 32 | |
| Software version | V 2.5 SR2 |
| Module type | Interbus generation 4 |
| Format | Standard |
| Product compatibility | 140CPU11303 |
| 140CPU43412A | |
| 140CPU53414B | |
| Product specific application | For standard applications |
| Module profile | PCP V2.0 |
| Method of access | Master |
| Communication port protocol | Interbus RS485 isolated 500 kbit/s conforming to DIN 66020 |
| Serial link | |
| Type of cable | Twisted pair |
| Cable length | <= 20 m |
| Memory capacity | 128 kB + 256 kB firmware EPROM |
| 2 kB dual-port RAM RAM | |
| 256 kB + 32 kB for data RAM | |
| 64 kB Interbus command sequence EEPROM | |
| 64 kB multi-port RAM RAM | |
| Bus current requirement | 800 mA |
| Product compatibility | 140CPU11303 6 Interbus local rack |
| 140CPU43412A or 140CPU53414B 2 Interbus local rack | |
| Rack type | Local |
| Power dissipation in W | 4 W |
| Local signalling | 1 LED green communication with the Quantum CPU active (ACTIVE) |
| 1 LED green firmware and module run (RUN) | |
| 1 LED green Interbus is functioning normally and carrying data (IS-B RUN) | |
| 1 LED red fault module (F) | |
| 1 LED red initialization fault with the DEA 202 | |
| 1 LED red Interbus master is not operational | |
| 1 LED red Interbus module has reported a fault | |
| 1 LED red memory fault | |
| 1 LED red peripheral bus fault | |
| 1 LED red processor fault (master) | |
| 1 LED red remote bus fault | |
| 1 LED yellow one or more bus segments are shut down | |
| Electrical connection | 1 connector SUB-D 9 |
| 1 connector SUB-D 9 Interbus link |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed 140NOA62200 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this 140NOA62200 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty 140NOA62200, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped today?
Ask about exchanging your faulty 140NOA62200 for credit when ordering from MRO Electric
Is the Quantum 140NOA62200 module supported by Modsoft?
The Schneider Electric 140-NOA-622-00 Interbus Master Module is a versatile, high-performance component engineered for advanced automation and communication systems. This module is designed for seamless integration with Quantum CPUs (140CPU11303, 140CPU43412A, and 140CPU53414B), which support standard applications requiring robust Interbus communication. With its fourth-generation Interbus capability, the module provides reliable and efficient data exchange, conforming to DIN 66020 standards. Operating at 500 kbit/s on an RS485 isolated serial link, it ensures high-speed and error-resistant communication over twisted-pair cabling of up to 20 meters.
This module features a memory architecture optimized for performance, including a 128 kB and 256 kB firmware EPROM, two kB dual-port RAM, 64 kB Interbus command sequence EEPROM, and 256 kB + 32 kB for data RAM. Designed to meet the demands of industrial environments, it efficiently dissipates only 4 W of power and has a bus current requirement of 800 mA. The standard rack-compatible format facilitates effortless installation in local racks, making it an ideal solution for flexible and scalable system setups.
Comprehensive diagnostic capabilities are built into the module, which includes a suite of LED indicators for clear and immediate status updates. Green LEDs provide insight into active communication, firmware operation, and Interbus data transmission status. In contrast, red LEDs signal potential faults, such as initialization, memory, peripheral bus, processor, and remote bus issues. A yellow LED indicates when one or more bus segments are shut down, allowing for swift identification and resolution of network disruptions.
The 140-NOA-622-00 is supported by Concept and ProWORX 32 software (Version 2.5 SR2), ensuring compatibility with modern industrial control systems. Featuring a SUB-D 9 connector for Interbus link connections, the module is designed for ease of use and durability in demanding environments.
With CE marking, free shipping, and a two-year MRO Electric and Supply warranty, the 140-NOA-622-00 delivers exceptional value and peace of mind for users seeking reliable and efficient Interbus communication solutions.
What is the primary function of the 140-NOA-622-00 module?
The module acts as an Interbus master, enabling communication between Quantum CPUs and connected devices within an industrial automation system.
Which CPUs are compatible with this module?
It is compatible with Quantum CPUs, including 140CPU11303, 140CPU43412A, and 140CPU53414B.
What type of applications is this module suited for?
The module is designed for standard industrial applications requiring reliable Interbus communication.
What is the maximum cable length supported by the module?
The module supports twisted-pair cables up to 20 meters in length.
What memory capabilities does this module have?
The module features 128 kB + 256 kB firmware EPROM, 64 kB Interbus command sequence EEPROM, two kB dual-port RAM, and 256 kB + 32 kB data RAM.
How does the module provide diagnostics?
It uses a set of LEDs to indicate operational and fault statuses, including communication activity, initialization faults, memory errors, and bus segment shutdowns.
What software supports the 140-NOA-622-00?
The module is supported by Concept and ProWORX 32 software, specifically Version 2.5 SR2.
What type of electrical connections does the module use?
It uses two SUB-D 9 connectors for Interbus link connections and general electrical interfacing.
What is the power dissipation, and what is the current requirement for this module?
The module has a power dissipation of 4 W and requires a bus current of 800 mA.
What is the warranty and shipping policy for this module?
The module has a two-year MRO Electric and Supply warranty and free shipping.
Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry I/O Modules from other manufacturers such as Modicon and ABB.
Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like 140NOA62200, take a look at more from our I/O Modules line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our 140NOA62200 products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
