Schneider Electric 140GPS10000

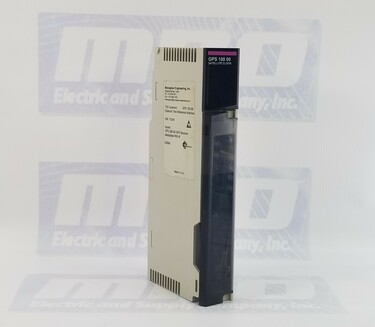

Schneider Electric 140GPS10000 Modicon TSX Quantum External Time Reference Interface

The Schneider Electric 140GPS10000 Modicon TSX Quantum External Time Reference Interface is a specialized GPS-based time synchronization module designed for use with Modicon Quantum automation systems. This module provides an accurate and reliable external time reference, using GPS signals and IRIG-B time codes to synchronize critical processes and events across industrial automation setups. In complex environments such as utilities, power generation, and manufacturing, precise time synchronization is essential for process coordination, data logging, and event tracking. The 140GPS10000 module is engineered to offer high precision, ensuring that all connected devices and controllers maintain exact timestamps. Backed by Schneider Electric's reputation for quality, this module also includes a two-year warranty from MRO Electric and Supply, offering added assurance for industrial applications.

High-Precision Time Synchronization

The 140GPS10000 module is designed to provide highly accurate time synchronization using GPS signals. Equipped with a GPS receiver, the module captures and decodes GPS data to maintain a precise time reference, typically accurate to within microseconds. By leveraging GPS technology, this module ensures the entire automation network remains in sync, eliminating discrepancies that could lead to process inefficiencies or data misalignment. This level of precision is precious in applications where exact event timing is critical, such as fault detection, data logging, and system analysis.

IRIG-B Time Code Compatibility

In addition to GPS synchronization, the 140GPS10000 module supports IRIG-B time code, a widely used standard for time synchronization in industrial environments. IRIG-B provides a continuous and reliable time signal, allowing devices across the network to maintain a consistent time reference. This compatibility makes the module versatile, as it can be used in facilities where IRIG-B time code is already in place or in combination with GPS-based time references for added redundancy. By supporting GPS and IRIG-B, the 140GPS10000 offers flexible integration options, accommodating the specific needs of various industrial setups.

Enhanced Process Coordination and Event Logging

With the 140GPS10000, operators can ensure that all process controllers, field devices, and logging systems maintain synchronized timestamps, which are essential for event tracking, coordination, and troubleshooting. Precise timestamps facilitate accurate event sequencing and analysis, allowing operators to pinpoint the exact moment an event occurred. This capability is invaluable for incident analysis, regulatory compliance, and system optimization. In energy distribution and transportation sectors, precise timekeeping is also critical for coordinating large-scale operations and ensuring reliable data exchange between control systems.

Ease of Integration with Modicon Quantum Systems

The 140GPS10000 is designed to seamlessly integrate with Schneider Electric's Modicon Quantum automation system, making it easy for operators to add GPS-based time synchronization to existing setups. Its plug-and-play design minimizes installation complexity, allowing users to quickly implement the module and synchronize devices without extensive configuration. This compatibility with the Modicon Quantum system ensures that users can enhance time accuracy in their automation network without replacing or extensively modifying their current infrastructure.

Robust Design and Compliance

Built to withstand the demanding conditions of industrial environments, the 140GPS10000 is designed for durability and resilience. It meets international standards for safety and quality, ensuring consistent performance across a wide range of operating conditions. The module's robust construction allows it to operate reliably even in harsh environments, where temperature fluctuations, vibrations, and electromagnetic interference are common. With CE marking, the 140GPS10000 adheres to stringent quality and safety regulations, providing operators with the peace of mind that their time synchronization infrastructure is compliant and reliable.

Frequently Asked Questions (FAQ)

1. What is the primary purpose of the 140GPS10000 module?

The 140GPS10000 module provides an external time reference for Modicon Quantum systems, using GPS and IRIG-B time signals to ensure precise time synchronization across the network.

2. What is IRIG-B, and why is it important?

IRIG-B is a time code format used in industrial time synchronization. It allows devices to maintain a continuous and consistent time reference, which is crucial for event logging and process coordination.

3. How accurate is the GPS-based time synchronization?

The 140GPS10000's GPS receiver provides time synchronization typically accurate to within microseconds, offering high precision for event tracking and data logging.

4. Is this module compatible with existing Modicon Quantum systems?

Yes, the 140GPS10000 is designed to integrate seamlessly with Modicon Quantum automation systems, making adding time synchronization capabilities to existing setups easy.

5. Can the 140GPS10000 module operate in harsh industrial environments?

This module is built to withstand demanding conditions, including temperature fluctuations, vibrations, and electromagnetic interference, making it suitable for industrial settings.

6. What is the warranty period for this module?

The 140GPS10000 comes with a two-year MRO Electric and Supply warranty, providing added reliability and longevity assurance.

The Schneider Electric 140GPS10000 Modicon TSX Quantum External Time Reference Interface is an essential tool for maintaining precise time synchronization in complex automation environments. It enhances process coordination, event logging, and system efficiency.

Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry CPUs from other manufacturers such as Modicon and ABB.
