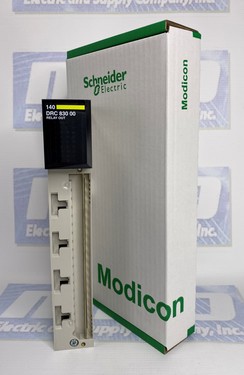

MODICON QUANTUM RELAY DISCRETE OUTPUT MODULE- 8 O
| Part Number | 140DRC83000 |
| Manufacturer | Schneider Electric |
| Type | I/O Modules |
| Model # | 140-DRC-830-00 |
| Warranty | 2 Year |
| Module format | Standard |
| Product or component type | Relay discrete output module |
| Discrete output number | 8 |
| Contacts type and composition | 1 NO/NC |
| Contact form | Form C |
| Discrete output voltage | 20...250 V AC |
| 30...150 V DC | |
| 5...30 V DC | |
| Addressing requirement | 0.5 output word |
| Maximum load current | 100 mA 30...50 V DC L/R = 10 ms |
| 2 A 250/30 V AC/DC tungsten 1/4 hp cos phi = 0.4 | |
| 3 A 250/30 V AC/DC | |
| 300 mA 30...50 V DC resistive | |
| 5 A 250/30 V AC/DC resistive at 60 °C | |
| Surge current | <= 20 A for 10 ms capacitive |
| Switching frequency | 30 Hz resistive |
| F = 0.5/I²L inductive | |
| Switching capacity in VA | 1250 VA resistive |
| Response time on input opening | <= 10 ms at state 0 to state 1 |
| <= 20 ms at state 1 to state 0 | |
| Mechanical durability | 10000000 cycles |
| Electrical durability | 100000 cycles 100 mA 30...150 V DC L/R = 10 ms |
| 100000 cycles 30...150 V DC interposing relay | |
| 100000 cycles 300 mA 30...150 V DC resistive |
| 100000 cycles 5 A 30 V DC resistive | |
| 200000 cycles 5 A 250 V AC resistive | |
| 50000 cycles 500 mA 30...150 V DC resistive | |
| Output overvoltage protection | Internal by varistor, 275 V |
| Isolation between channels | 1780 Vrms AC for 1 minute |
| 2500 V DC | |
| Isolation between channels and bus | 1780 Vrms AC for 1 minute |
| 2500 V DC for 1 minute | |
| Power dissipation | 2.75 W + (0.5 x the number of points on) |
| Marking | CE |
| Local signalling | 1 LED green bus communication is present (Active) |
| 1 LED red external fault detected (F) | |
| 8 LEDs green input status | |
| Bus current requirement | 560 mA |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed 140DRC83000 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this 140DRC83000 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty 140DRC83000, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped tomorrow?
Ask about exchanging your faulty 140DRC83000 for credit when ordering from MRO Electric
Schneider Electric presents the 140DRC83000, a robust and versatile I/O module designed to meet the demanding needs of industrial control systems. With its reliable performance and comprehensive features, this module is a testament to Schneider Electric's commitment to excellence in automation technology.
This module boasts a standard format, ensuring seamless integration into existing control setups while providing flexibility for future expansions. Its compact design belies its powerful capabilities, making it suitable for various industry applications.
As a relay discrete output module, the 140DRC83000 offers eight discrete output channels, each featuring 1 NO/NC contact composition in a Form C contact form. This configuration enables precise control and monitoring of connected devices, enhancing operational efficiency and safety.
This module is equipped to handle varying voltage requirements. It supports discrete output voltages ranging from 20 to 250 V AC, 30 to 150 V DC, and 5 to 30 V DC. Such versatility ensures compatibility with diverse equipment and systems, facilitating seamless integration and operation.
Efficient addressing requirements, with just 0.5 output word, streamline setup and configuration processes, reducing installation time and complexity. Moreover, the module boasts impressive load management capabilities, with a maximum load current of 100 mA to 5 A across different voltage ranges, catering to various devices and machinery.
Designed for longevity and reliability, the 140DRC83000 exhibits exceptional mechanical and electrical durability. It is capable of enduring rigorous industrial environments. With mechanical durability rated at 10 million cycles and electrical durability at 100,000 cycles, this module ensures consistent performance over extended periods.
Advanced features such as surge current protection, overvoltage protection, and robust isolation between channels and bus safeguard the module and connected equipment against potential damage or malfunction, enhancing system resilience and longevity.
Integrated LEDs provide convenient local signaling, indicating bus communication status, fault detection, and individual input statuses. This enables quick diagnostics and troubleshooting for enhanced operational efficiency.
With a power dissipation of 2.75 W plus 0.5 times the number of points, the module ensures efficient energy utilization while minimizing heat generation. CE-certified, it meets stringent quality and safety standards, providing peace of mind to users and operators.
Q: What is the purpose of the Schneider Electric 140DRC83000 relay discrete output module?
A: The 140DRC83000 is designed to control and monitor various devices and machinery in industrial settings. It is a crucial component in automation systems, providing precise control over discrete outputs.
Q: How many output channels does the 140DRC83000 module have?
A: This module features eight discrete output channels, offering ample capacity for controlling multiple devices simultaneously.
Q: What types of contacts does the module support, and what is the contact form?
A: Each output channel features 1 NO/NC contact composition in a Form C contact form, providing versatility in connectivity and control.
Q: What voltage ranges does the 140DRC83000 support for discrete output?
A: The module supports discrete output voltages ranging from 20 to 250 V AC, 30 to 150 V DC, and 5 to 30 V DC, ensuring compatibility with various equipment and systems.
Q: How does the module handle addressing requirements?
A: The module's addressing requirement is 0.5 output words, simplifying setup and configuration processes for efficient operation.
Q: What is the maximum load current supported by the 140DRC83000?
A: The module can handle load currents ranging from 100 mA to 5 A across different voltage ranges, catering to various devices and machinery.
Q: What durability ratings does the module have?
A: The 140DRC83000 exhibits exceptional mechanical durability, rated at 10 million cycles, and electrical durability, rated at 100,000 cycles, ensuring reliable performance over extended periods.
Q: What protection mechanisms does the module offer?
A: The module features surge current protection, overvoltage protection, and robust isolation between channels and the bus, safeguarding the module and connected equipment against potential damage or malfunction.
Q: How does the module provide feedback and status indication?
A: Integrated LEDs provide local signaling, indicating bus communication status, fault detection, and individual input statuses, facilitating quick diagnostics and troubleshooting.
Q: What certifications does the module have?
A: The module is marked with the CE certification, ensuring compliance with stringent quality and safety standards.
Q: What is the power dissipation of the module?
A: The 140DRC83000's power dissipation is 2.75 W plus 0.5 times the number of points on, ensuring efficient energy utilization and minimal heat generation.
