140DDM69000

2-year Warranty

Same Day Shipping

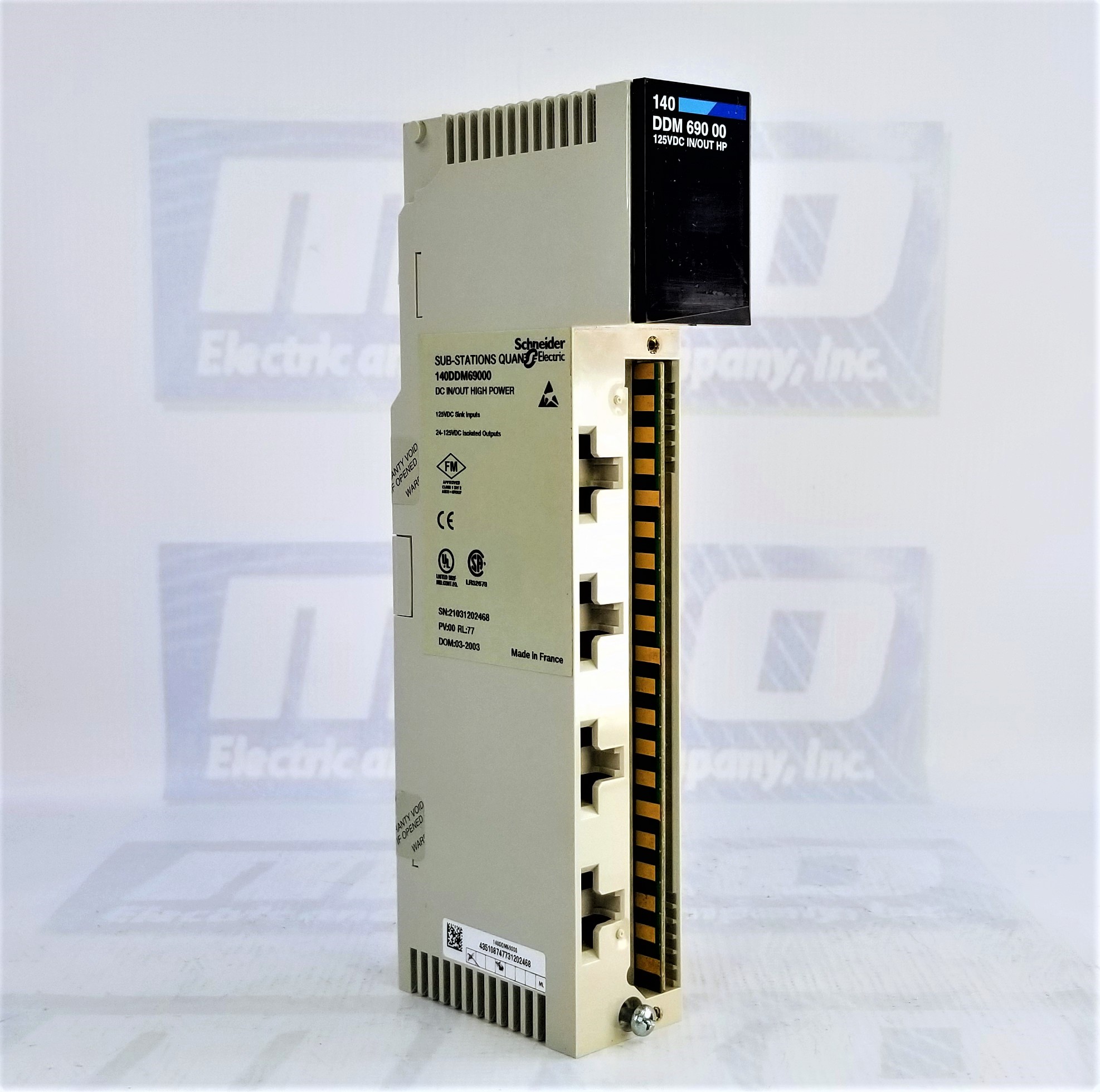

Schneider Electric 140DDM69000

MODICON QUANTUM DISCRETE I/O 4 I - 125 V DC - 4 O SOLID STATE

5/5
2 ratings

5 in stock

Ships Today


Free Shipping

2 Year warranty

Part Number140DDM69000
ManufacturerSchneider Electric
TypeI/O Modules
Model #140-DDM-690-00
Warranty2 Year
Bus current requirement330 mA
Product or component typeMixed discrete I/O module
Discrete I/O number8
Discrete input number4 1 group of 8
Discrete input logicSink
Addressing requirement1 input word
1 output word
Network frequency limits47...63 Hz
Discrete input voltage125 V DC
Input voltage limits156.2 V including ripple
Voltage state 0 guaranteed0...36 V
Voltage state1 guaranteed88...156.2 V
Current state 0 guaranteed<= 1.2 mA
Current state 1 guaranteed>= 2 mA
Response time0.5 or 1.5 ms depending on the filter at state 0 to state 1
0.5 or 1.5 ms depending on the filter at state 1 to state 0
Discrete output number4 1 group of 4
Discrete output typeSolid state, isolated
Discrete output logicSource or sink
Discrete output voltage24...125 V
Output voltage limits19.2...156.2 V DC typical
Maximum load current<= 16 A per module
<= 4 A per point
Voltage drop0.75 V 4 A
Absolute maximum output30 A during 500 ms per point
Load capacitance<= 0.1 µF 150 V DC
<= 0.6 µF 24 V DC
Leakage current1.2 mA 150 V DC
Protection typeOn input by resistor limited
On output by transient voltage suppression
Internal output protection by 5 A fuse per group
Associated fuse rating5 A
Isolation between group of I/O1780 Vrms for 1 minute
channels
Isolation between group and bus2500 Vrms for 1 minute
Isolation between channels1780 Vrms for 1 minute
Fault indicationOvercurrent on output
Power dissipation0.4 W + (1 x input point on) + (0.75 total output load current)
Local signalling1 LED green bus communication is present (Active)
1 LED red no voltage in output and input (F)
2 LEDs red fault detected on the output point
4 LEDs green output is turned on
4 LEDs red fault detected on the input point
MarkingCE

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed 140DDM69000 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this 140DDM69000 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty 140DDM69000, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 1lb

Want it shipped today?

  • Order within the next 11 hours and 2 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty 140DDM69000 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric 140DDM69000 Overview

Schneider Electric 140-DDM-690-00 Mixed Discrete I/O Module

The Schneider Electric 140-DDM-690-00 Mixed Discrete I/O Module is a robust and versatile solution for industrial automation, designed to manage high-voltage inputs and outputs within a single module. This component perfectly fits Schneider Electric’s Modicon Quantum system, offering reliable control and monitoring in various industrial environments. With eight discrete I/O points, including four inputs and four outputs, it is an ideal module for applications requiring efficient processing of mixed I/O signals. This module is backed by a two-year MRO Electric and Supply warranty, ensuring long-term performance and reliability in demanding industrial setups.

Discrete Input Specifications and Logic

The module includes four discrete inputs, all grouped for streamlined operation, with sink logic configuration. The input voltage is designed for high levels, operating at a typical 125 V DC, and can handle surges up to 156.2 V, including ripple. This high-voltage capacity makes it particularly suitable for applications where the input signals must be read at elevated voltages. The module also offers assured state detection, guaranteeing a 0 at 0 to 36 V and a 1 at 88 to 156.2 V. The current requirements are minimal, with state 0 at less than or equal to 1.2 mA and state one at two mA or higher, helping to maintain efficient power usage.

Output Configuration and Load Handling

Equipped with four solid-state outputs that can be isolated and configured for both source or sink logic, the 140-DDM-690-00 offers flexible output options to meet various industrial needs. These outputs operate within a broad voltage range of 24 to 125 V DC, with limits extending from 19.2 to 156.2 V DC. Each output point can handle up to 4 A of current, with the total module capacity reaching 16 A, making it suitable for high-power applications. The output circuit has a voltage drop of just 0.75 V at 4 A for added reliability, ensuring efficient power delivery without significant loss. The module also supports high peak loads, allowing up to 30 A for 500 ms per point, allowing it to handle brief power surges without compromising its integrity.

Protection and Isolation Features

The Schneider Electric 140-DDM-690-00 module has extensive protective features to ensure durability and safety in high-stress environments. Each input has resistor-limited protection, while each output is safeguarded by transient voltage suppression. Additionally, each output group includes a 5 A internal fuse for overcurrent protection. The isolation capabilities are robust, with 1780 Vrms isolation between input and output groups and 2500 Vrms isolation between the groups and the bus. This high isolation level enhances safety and prevents interference, making the module reliable in high-voltage applications.

Power Dissipation and Status Indicators

Efficient power dissipation is a core feature of this module, with a base dissipation of 0.4 W, which adjusts based on the number of active input and output points. The module provides multiple LEDs for monitoring purposes: a green LED for bus communication status, red LEDs indicating fault conditions on both input and output points, and green LEDs showing active outputs. Additionally, a red LED signals any lack of voltage in both input and output circuits, helping operators quickly diagnose and resolve issues.

Compliance and Certification

Marked with the CE certification, the 140-DDM-690-00 meets international standards for safety and quality, making it compatible with a wide range of global applications. It operates within a network frequency range of 47 to 63 Hz, making it suitable for diverse power systems across industries. This combination of reliability, safety, and versatility makes it essential for industrial automation applications.

FAQs

What is the maximum voltage the inputs on the 140-DDM-690-00 can handle?

The inputs on this module operate at 125 V DC, with a maximum limit of 156.2 V DC, allowing for brief surges without damage to the system.

Can the output channels handle high currents?

Yes, each output channel can handle up to 4 A, with a total module capacity of 16 A. Each channel can manage up to 30 A for 500 ms for short bursts.

What protections are included to prevent overcurrent and voltage spikes?

The module includes transient voltage suppression for output protection, resistor-limited input protection, and a 5 A fuse for each output group, ensuring robust safeguards against electrical issues.

How is the module’s status monitored?

The module has several LEDs for real-time monitoring: green LEDs indicate active outputs, red LEDs signal faults on inputs or outputs, and green LED shows that bus communication is active. An additional red LED signals the absence of voltage in input or output channels.

What isolation does the module provide between I/O channels and the bus?

The module provides 1780 Vrms isolation between input and output groups and 2500 Vrms between the I/O groups and the bus, ensuring safety and interference resistance across systems.

Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry I/O Modules from other manufacturers such as Modicon and ABB.
