Schneider Electric 140DDM39000

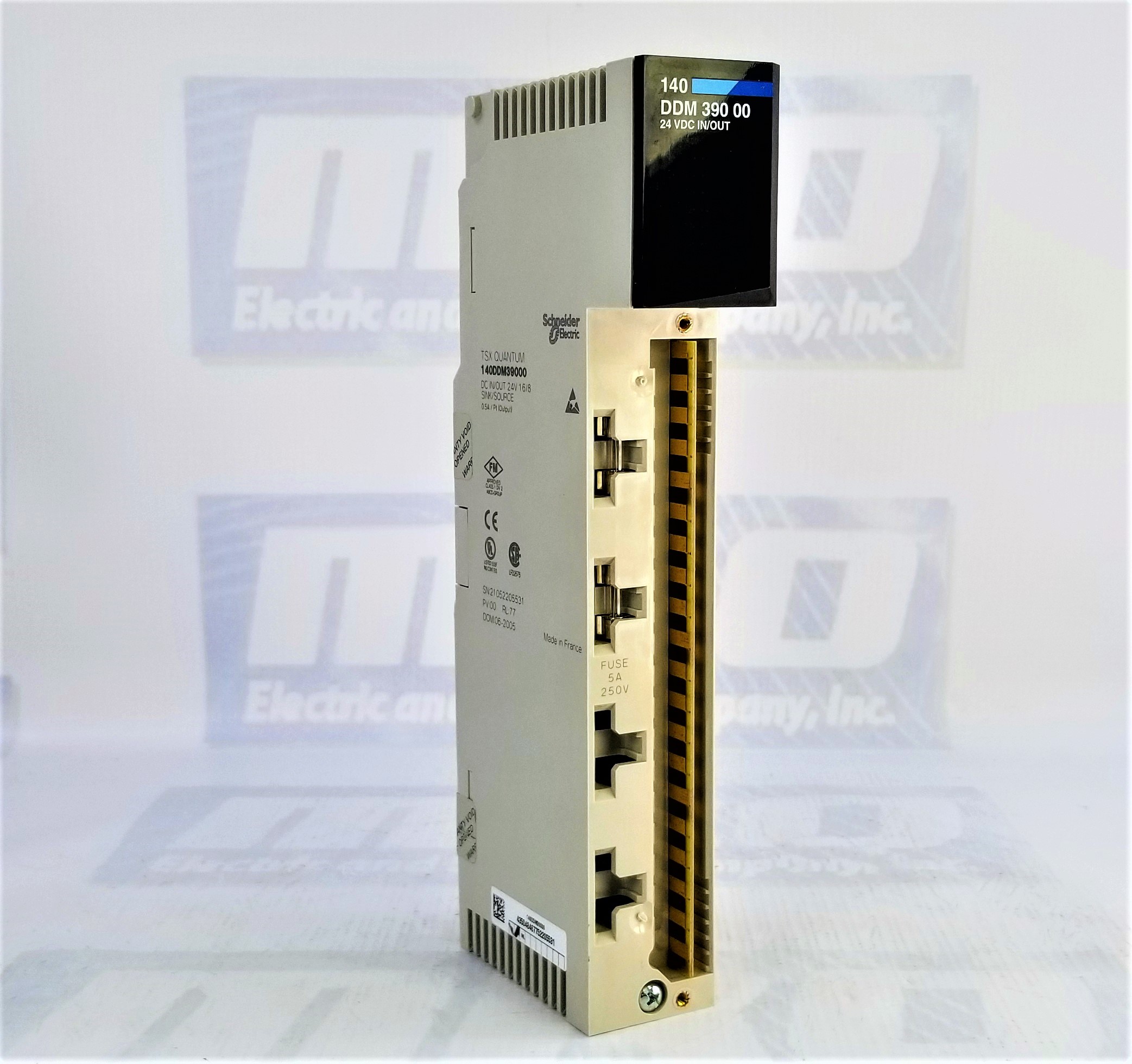

Schneider Electric 140-DDM-390-00 Mixed Discrete I/O Module

The Schneider Electric 140-DDM-390-00 Mixed Discrete I/O Module is a versatile industrial automation component designed to manage both input and output signals with exceptional reliability. Built to integrate seamlessly into Schneider Electric’s Modicon Quantum system, it is ideal for applications that require precise control over multiple discrete I/O points in a single device. Backed by a two-year MRO Electric and Supply warranty, the 140-DDM-390-00 delivers long-term durability and performance in demanding industrial environments, making it a cost-effective and efficient solution for managing automation processes.

Discrete Input and Output Capabilities

The 140-DDM-390-00 module is designed with 24 discrete I/O points: 16 inputs and eight outputs, organized into manageable groups for efficient signal processing. The inputs are divided into two groups of 8 and are configured with sink logic. This design allows the module to respond to lower voltage signals, enhancing its adaptability for various industrial applications. The discrete inputs operate at a typical 24 V DC, with voltage limits extending up to 30 V, and can withstand voltage peaks of up to 56 V during brief 1.3 ms pulses. With an input impedance of 2500 Ohms, the module can handle diverse input conditions while maintaining high accuracy in data acquisition.

Output Specifications and Load Management

The module’s output section includes eight discrete outputs arranged in two groups of 4, utilizing solid-state technology for increased durability and responsiveness. The outputs operate at 24 V DC, and each point can handle a load of up to 0.5 A, with each group supporting up to 2 A and the module as a whole accommodating up to 4 A. For added reliability, each output point includes a voltage drop of 0.4 V at 0.5 A, ensuring consistent and reliable power distribution across the outputs. This configuration allows the module to handle high inductive loads of up to 500 mH and capacitances of up to 50 µF, making it well-suited for applications involving dynamic loads and high switching frequencies.

Protection and Isolation Features

Safety is a priority with the 140-DDM-390-00, which includes multiple layers of protection to prevent damage from electrical disturbances. Each output group is protected by a 5 A fuse, and transient voltage suppression is included to protect against voltage spikes. Input protection is managed via a resistor-limited circuit, safeguarding against potential overvoltage conditions. Isolation is robust, with 500 Vrms isolation between groups and 1780 Vrms isolation between the group and the bus, ensuring safe operation even in high-voltage environments. This isolation prevents interference and protects both the module and other connected devices.

Efficient Power Dissipation and Visual Indicators

The 140-DDM-390-00 module efficiently manages power dissipation with a base power dissipation of 1.75 W, which increases depending on the active input and output points. The module’s status is easily monitored through several LEDs that provide visual signals:

• Two red LEDs indicate faults on output points.
• Two additional red LEDs show input faults.
• Green LEDs confirm active output points.

Furthermore, a green LED indicates bus communication is active. In contrast, a red LED signals a lack of voltage on input and output points, helping operators quickly identify and respond to potential issues.

Compliance and Operational Standards

The Schneider Electric 140-DDM-390-00 module, marked with CE certification, meets international safety and quality standards, making it suitable for deployment in various industrial environments. It supports network frequencies from 47 to 63 Hz, ensuring compatibility across different power systems and enhancing integration flexibility into existing automation systems.

FAQs

What type of inputs and outputs does the 140-DDM-390-00 module support?

The module supports 16 discrete inputs with sink logic, divided into two groups of 8, and 8 discrete outputs organized in two groups of 4, also using sink logic.

What is the maximum voltage the inputs can handle?

The inputs operate within a 24 V DC range but can handle voltage up to 56 V for brief 1.3 ms pulses, making them resilient to short-term surges.

How much load current can each output handle?

Each output point can manage up to 0.5 A, each output group up to 2 A, and the entire module up to 4 A. This load flexibility is ideal for diverse industrial applications.

What protections are included in the module?

The module has a 5 A fuse for each output group, transient voltage suppression, and resistor-limited input protection, ensuring robust protection against overcurrent and voltage spikes.

How is module status monitored?

The module provides various LEDs for visual monitoring: green LEDs for output status, red LEDs for faults, and an additional red LED to indicate a lack of voltage on input and output points, facilitating quick diagnostics.
