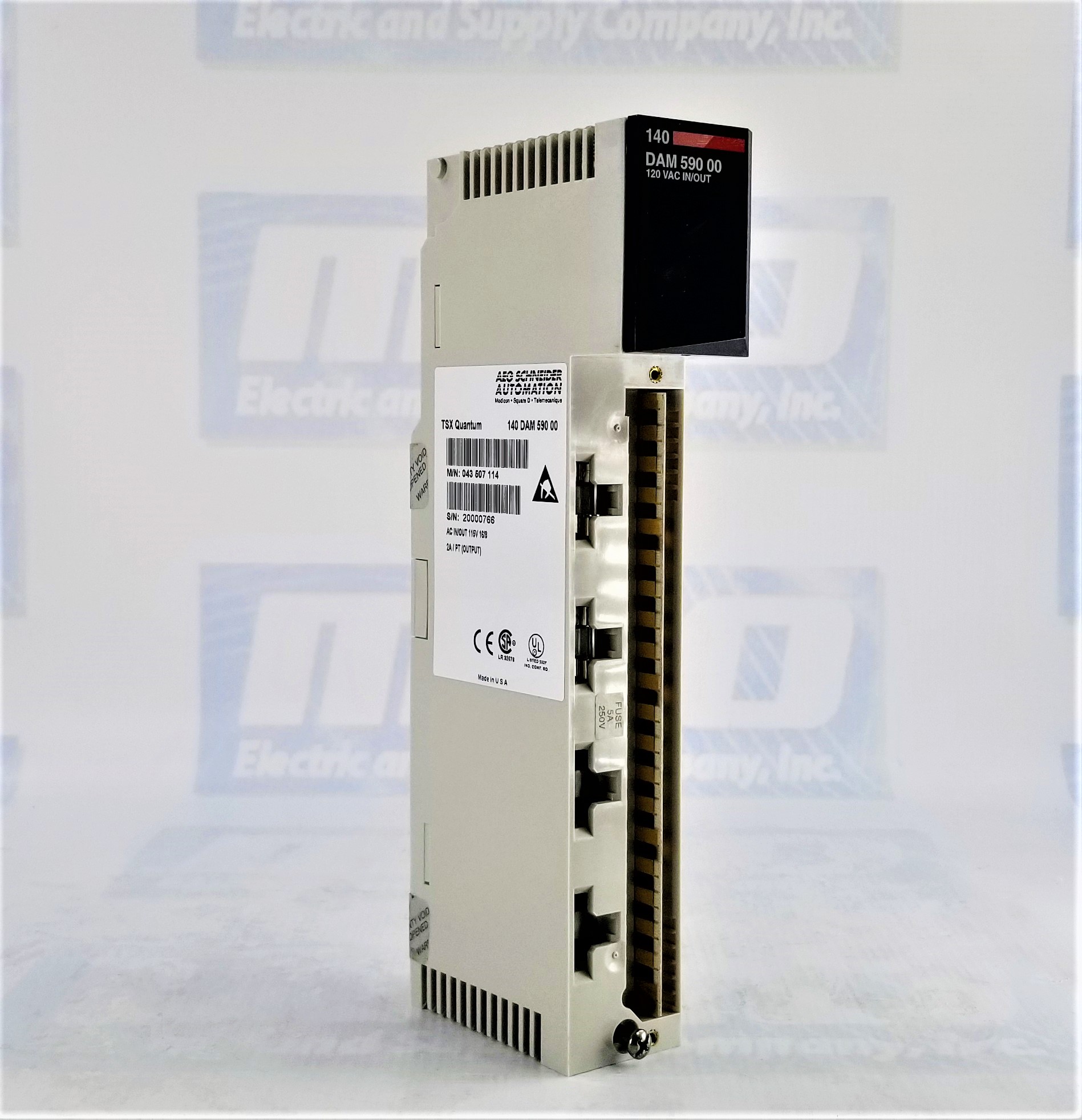

Schneider Electric 140DAM59000 Mixed Discrete I/O Module

The Schneider Electric 140DAM59000 is a robust mixed discrete I/O module designed for industrial control applications within the Modicon Quantum series. As a standard-format module, it offers a versatile solution by providing a mix of discrete inputs and outputs. It is ideal for integrating into control systems where both input monitoring and output control are required. With a two-year warranty from MRO Electric and Supply, this module guarantees reliable performance, and free shipping is included for added convenience.

Key Features and Functionality

The 140DAM59000 model is classified as a mixed discrete I/O module, enabling it to handle 24 discrete I/Os. The module features 16 discrete inputs, organized into two groups of eight, and eight discrete outputs, arranged into two groups of four. This configuration offers flexibility for applications requiring efficient signal monitoring and control.

The module's addressing requirements include one input word and half an output word, making integration into systems straightforward. The 140DAM59000 supports network frequency limits ranging from 47 to 63 Hz, which allows it to function effectively in varying power system frequencies.

Electrical Specifications and Input Details

For the discrete input section, the module operates at 115 V AC. It guarantees a voltage State 0 range of 0 to 20 V and a State 1 range of 79 to 132 V at 60 Hz or 85 to 132 V at 50 Hz. Additionally, the 140DAM59000 module is built with an input impedance of 14,400 Ohms, ensuring stability and accuracy in signal detection. The input current requirements include a current State 0 of 0.5 mA or less, while the current State 1 requirements reach 11 mA at 50 Hz and 13.2 mA at 60 Hz.

The module can tolerate input voltage surges of up to 200 V for one cycle and up to 156 V for 10 seconds. These parameters ensure the module can withstand transient overvoltage conditions without damage, enhancing its reliability and longevity.

Discrete Output Capabilities and Safety Measures

The module utilizes solid-state outputs rated at 115 V AC for discrete output. It can handle a maximum load current of 4 A per point, 8 A per group, and 8 A per module, offering considerable flexibility for controlling connected devices. The output voltage is typically within the 85 to 132 V AC range, with an absolute maximum output capacity of 30 A for one cycle per point or group.

The module's output section includes various safety and protection features. The protection type involves an RC filter on each output and internal output protection via a 5 A fuse per group. Additionally, the 140DAM59000 offers fault indication capabilities, alerting users to issues such as loss of field power or blown fuses on outputs.

Isolation and Power Requirements

The 140DAM59000 module boasts strong isolation capabilities, with 1000 Vrms isolation between groups and 1780 Vrms between channels and the bus. These isolation levels safeguard the module from electrical faults and interference, enhancing system stability. The module's power dissipation is rated at 5.5 W plus 1.1 times the total module load current, making it energy-efficient.

Local signaling includes a green LED to indicate active bus communication and red LEDs to signal faults on input and output points. Additionally, the module requires an external power source of 85 to 132 V AC for its output circuit.

Frequently Asked Questions (FAQs)

Q1. How are the discrete inputs and outputs of the Schneider Electric 140DAM59000 module organized?

The module is organized into two groups of eight discrete inputs and two groups of four discrete outputs. This layout offers flexibility in monitoring and controlling multiple signals.

Q2. What type of protection is provided for the output section of the 140DAM59000 module?

The module's output section is protected by an RC filter and internal fuses rated at 5 A per group. These protection measures help prevent damage from electrical faults or short circuits.

Q3. What isolation capabilities does the 140DAM59000 module offer?

The module provides 1000 Vrms of isolation between groups and 1780 Vrms between channels and the bus, maintained for one minute. This isolation prevents electrical faults and interference between different sections of the module.

Q4. What fault indicators are available on the 140DAM59000 module?

The module features local signaling with red LEDs to indicate faults such as loss of field power on outputs or blown fuses. This visual indication helps quickly identify and resolve issues.

Q5. What is the maximum load current per point for the output section of the 140DAM59000 module?

The maximum load current per point is 4 A, allowing for controlling devices with substantial power requirements. The module also supports a total load current of 8 A per group and per module. Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry I/O Modules from other manufacturers such as Modicon and ABB.
