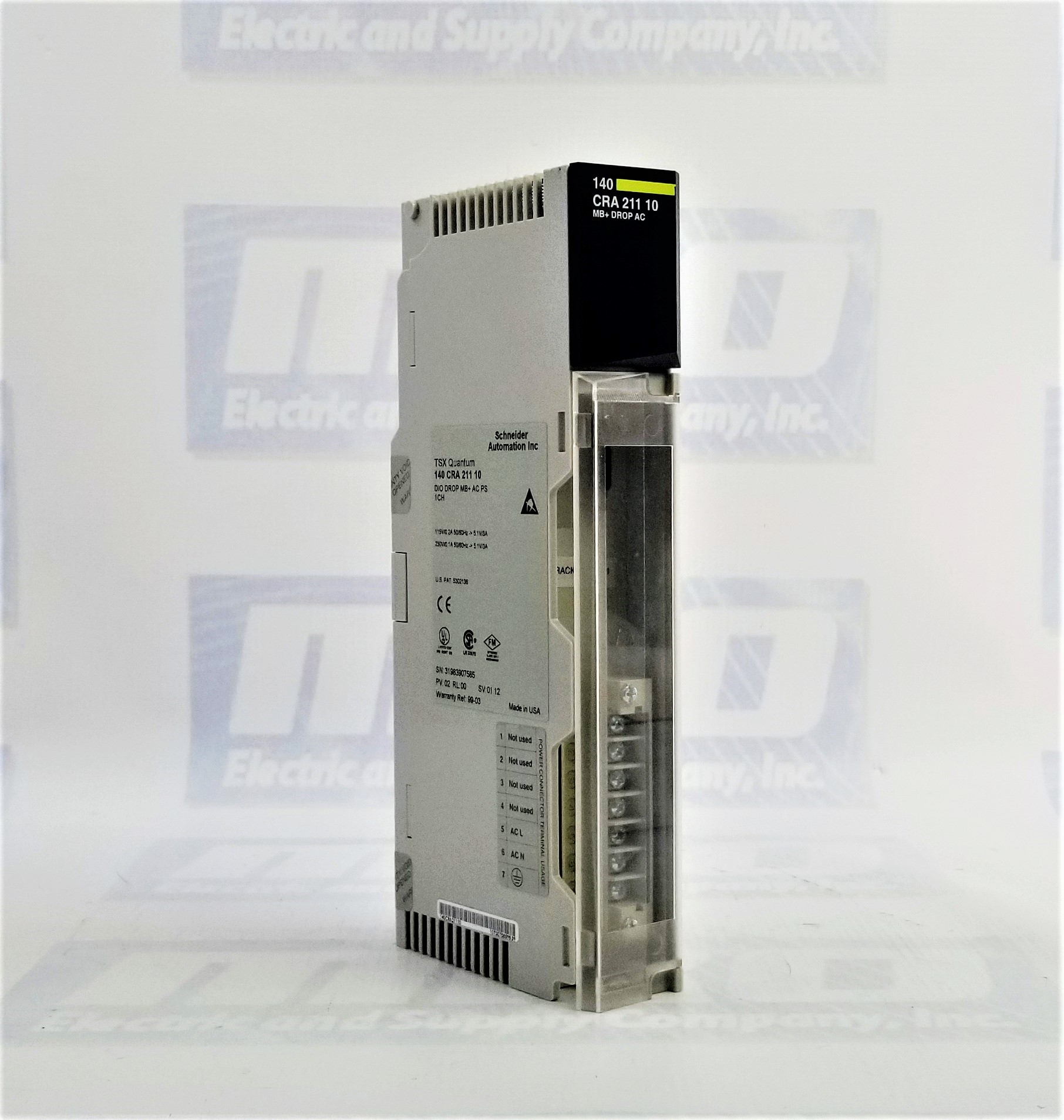

MODICON QUANTUM DROP INTERFACE- 115/230 V AC - 1 SINGLE PORT
| Part Number | 140CRA21110 |
| Manufacturer | Schneider Electric |
| Type | I/O Modules |
| Model # | 140-CRA-211-10 |
| Warranty | 2 Year |
| Electrical connection | 1 connector, connector type: RJ45 for connecting Modbus bus |
| 1 female connector, connector type: SUB-D 9 for connecting to the Modbus Plus network | |
| 1 connector, connector type: LC (single mode fiber optic) for interconnecting primary and secondary PLCs up to 16 km | |
| Product or component type | DIO drop interface |
| Number of port | 1 single |
| [Us] rated supply voltage | 115/230 V AC |
| Supply voltage limits | 85...276 V |
| Supply frequency | 47...63 Hz |
| Supply current | 0.4 A 230 V |
| 0.2 A 115 V | |
| Inrush current | 20 A 230 V |
| 10 A 115 V | |
| Rated power in VA | 50 VA |
| Associated fuse rating | 1.5 A |
| Output voltage | 5.1 V |
| Nominal output current | 3 A |
| Load current | >= 0 A |
| Short-circuit protection | With |
| Output overvoltage protection | With |
| I/O words | 30 I/32 O |
| Typical backplanes | 2 positions |
| 3 positions | |
| 4 positions | |
| 6 positions | |
| 10 positions | |
| 16 positions | |
| Diagnostics startup | Checksum |
| RAM | |
| RAM address | |
| Diagnostics run time | Checksum |
| RAM | |
| RAM address | |
| Power dissipation in W | 11 W |
| Connections - terminals | Terminal block, 7 poles |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed 140CRA21110 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this 140CRA21110 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty 140CRA21110, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped tomorrow?
Ask about exchanging your faulty 140CRA21110 for credit when ordering from MRO Electric
The 140CRA21110 stands as a key component within the Modicon Quantum automation platform, serving as a Digital Input/Output (DIO) drop interface. This module is designed to interface seamlessly with the automation system, providing robust connectivity and control capabilities.
Featuring a single port, the 140CRA21110 operates with a rated supply voltage of 115/230 V AC. The supply voltage limits range from 85 to 276 V, ensuring compatibility with a variety of power sources. The module exhibits a maximum supply current of 0.2 A at 115 V and 0.4 A at 230 V, with inrush currents of 10 A and 20 A, respectively. The rated power in VA is 50, accompanied by an associated fuse rating of 1.5 A. The output voltage is stabilized at 5.1 V, supporting a nominal output current of 3 A with short-circuit and overvoltage protection mechanisms in place.
With 30 input and 32 output I/O words, the 140CRA21110 provides extensive configurability for digital signals. It is compatible with various backplane configurations, including 3, 2, 6, 16, 10, and 4 positions, enhancing its adaptability to diverse system architectures. Diagnostics capabilities cover both startup and runtime scenarios, monitoring critical aspects such as RAM address and checksum for robust system health.
The module exhibits a power dissipation of 11 W, contributing to its energy-efficient design. Terminal connections are facilitated through a 7-pole terminal block, ensuring secure and reliable electrical connections. The module adheres to standard form factors, facilitating easy integration into existing automation setups.
The 140CRA21110 is engineered to withstand challenging environmental conditions prevalent in industrial settings. It exhibits resistance to electrostatic discharge, meeting IEC 801-2 standards with 4 kV contact and 8 kV on air. Additionally, it demonstrates resilience to electromagnetic fields, with a resistance of 9.14 V/m (10 V/m) in the frequency range of 80 to 2000 MHz, conforming to IEC 801-3 standards.
Operating within a temperature range of 32 to 140 °F (0 to 60 °C), the module remains reliable even in demanding thermal environments. It has a storage temperature range of -40 to 185 °F (-40 to 85 °C). The module can operate at a maximum altitude of 16404.2 ft (5000 m), making it suitable for a broad range of industrial applications.
Adhering to UL 508 standards, the 140CRA21110 ensures compliance with safety and performance benchmarks. It holds certifications from CSA Class 1 Division 2, UL, DNV, C-tick, and GOST, reflecting its suitability for deployment in various regulatory environments.
Positioned as a Green Premium product, the 140CRA21110 aligns with sustainable practices. It is REACh-free of SVHC, adheres to EU RoHS directives, and complies with China RoHS regulations. The module is mercury-free, further emphasizing its commitment to environmentally responsible manufacturing.
In adherence to WEEE directives, the 140CRA21110 must be responsibly disposed of on European Union markets. Circular economy principles are embraced, providing comprehensive end-of-life information for environmentally conscious product lifecycle management.
The Schneider Electric 140CRA21110 is a DIO Drop Interface module designed for industrial automation applications. It connects different input and output systems and provides communication support, particularly for Modbus and Modbus Plus networks.
The module supports multiple types of connections:
The module operates at a rated supply voltage of 115/230 V AC, with supply voltage limits ranging from 85 to 276 V. It supports both standard AC voltage levels in industrial applications, providing installation flexibility.
The Schneider Electric 140CRA21110 features one single port for reliable connectivity in automation systems.
The module has a rated power of 50 VA and a supply current of 0.4 A at 230 V and 0.2 A at 115 V. This power rating ensures stable operation and efficient energy consumption.
This I/O module is equipped with short-circuit protection and output overvoltage protection. These features help prevent electrical damage to the module and connected devices in the event of a fault.
The module is associated with a 1.5 A fuse, which helps safeguard the device from overcurrent situations.
The maximum inrush current is 20 A at 230 V and 10 A at 115 V, ensuring a smooth startup without triggering faults or interruptions.
The module supports 30 input words and 32 output words, providing adequate capacity for typical industrial control applications.
The 140CRA21110 uses backplanes featuring two positions, allowing for integration into various system setups.
Yes, the Schneider Electric 140CRA21110 has a two-year warranty, ensuring its quality and durability.
Yes, the LC (single mode fiber optic) connector allows for interconnecting primary and secondary PLCs over distances of up to 16 km, providing flexibility in large-scale industrial environments.
This versatile set of features makes the Schneider Electric 140CRA21110 an ideal solution for complex industrial automation setups, supporting diverse connections and long-distance PLC communications.
Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry I/O Modules from other manufacturers such as Modicon and ABB.
