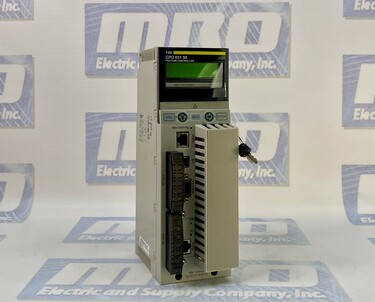

Schneider Electric 140CPU65150C Modicon Quantum Unity Processor

The Schneider Electric 140CPU65150C is a powerful and versatile processor module designed for the Modicon Quantum automation platform. This CPU is part of Schneider Electric’s Unity series, offering high-performance industrial automation and control systems solutions. Known for its flexibility and ability to handle complex operations, the 140CPU65150C is a top choice for applications that require reliability, speed, and extensive connectivity options. It is commonly used in various industries, including manufacturing, energy, and infrastructure, to automate processes and improve operational efficiency.

High-Speed Processing and Memory Capabilities

The 140CPU65150C has a 166 MHz processor that ensures fast and efficient data processing, allowing the system to perform real-time control tasks efficiently. Its high-speed performance is complemented by its robust memory capabilities. The internal RAM provides 768 KB of space, and the memory can be expanded up to 7168 KB for program storage using a PCMCIA card. For file storage, the memory can be expanded up to 8 MB. This large memory capacity enables the processor to handle large automation programs and data, making it suitable for demanding applications that require extensive data handling.

Extensive I/O and Communication Options

One of the standout features of the 140CPU65150C is its ability to handle a wide range of input and output (I/O) options. The processor can manage an unlimited number of discrete I/Os, including 8000 inputs and 8000 outputs on the distributed Modbus Plus network. For remote I/Os, the processor can handle up to 31,744 inputs and 31,744 outputs, ensuring it can support complex systems with numerous devices and sensors. It also supports 1984 analog inputs and outputs through the S908 remote I/O and Modbus Plus networks. Additionally, the 140CPU65150C supports various application-specific I/Os, including high-speed interrupt inputs, counters, serial links, and accurate time-stamping.

Multiple Communication Interfaces

The 140CPU65150C offers multiple communication interfaces, making integrating into diverse automation systems easy. It features one Ethernet TCP/IP connection, one Modbus Plus connection, and one USB connection, providing flexible options for connecting to other devices and controllers. The processor also supports up to six Ethernet TCP/IP connections, six Modbus Plus connections, and six Profibus DP connections, making it ideal for distributed control systems that require robust communication capabilities. These communication options ensure seamless integration with other devices and controllers in the system, allowing for easy expansion and scalability.

Safety and Control Features

The Schneider Electric 140CPU65150C is designed with safety and reliability in mind. It includes a key switch that allows users to control memory port access, preventing unauthorized changes to system settings. This feature ensures only authorized personnel can modify critical settings, improving overall system security. The processor also includes several built-in checks, such as process control and system diagnostics, to monitor system performance and ensure smooth operation. Additionally, the CPU features local signaling with green and red LEDs to indicate Ethernet activity and collisions, respectively.

Warranty and Free Shipping

When purchased through MRO Electric and Supply, the Schneider Electric 140CPU65150C comes with a 2-year warranty, ensuring peace of mind for customers. This warranty protects your investment against defects or malfunctions during normal operation. In addition to the warranty, MRO Electric offers free shipping, making the purchasing process more convenient and cost-effective for customers.

Frequently Asked Questions (FAQs) for Schneider Electric 140CPU65150C.

1. What communication ports are available on the 140CPU65150C?

The 140CPU65150C features multiple communication options, including one Ethernet TCP/IP port, a Modbus Plus port, and a USB port. It also supports up to six Ethernet TCP/IP connections, six Modbus Plus connections, and six Profibus DP connections, making it highly flexible for different control system architectures.

2. What is the clock frequency of the processor?

The processor operates at a clock speed of 166 MHz, which ensures fast and efficient data processing and allows for real-time control in demanding industrial applications.

3. How much memory does the 140CPU65150C have?

The processor has 768 KB of internal RAM, and its memory can be expanded using PCMCIA cards to 7168 KB for program storage and 8 MB for file storage. This makes it suitable for handling large automation programs.

4. How many I/O stations can the 140CPU65150C support?

Depending on the configuration, the processor can support up to 31 remote I/O stations and 63 distributed I/O stations. It can also handle unlimited discrete I/Os and up to 31,744 remote inputs and outputs.

5. What safety features are included in the 140CPU65150C?

The processor includes a key switch for memory port control, preventing unauthorized access to critical system settings. It also features built-in process control checks and diagnostics to monitor system performance.

6. Is free shipping available for the 140CPU65150C?

Yes, MRO Electric and Supply offers free shipping on the 140CPU65150C, ensuring customers receive their orders promptly and cost-effectively.

7. What warranty is provided with the 140CPU65150C?

MRO Electric and Supply offers a 2-year warranty on the 140CPU65150C, covering any defects or malfunctions that may occur during normal operation.

Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry CPUs from other manufacturers such as Modicon and ABB.
