Schneider Electric 140CPU21304C

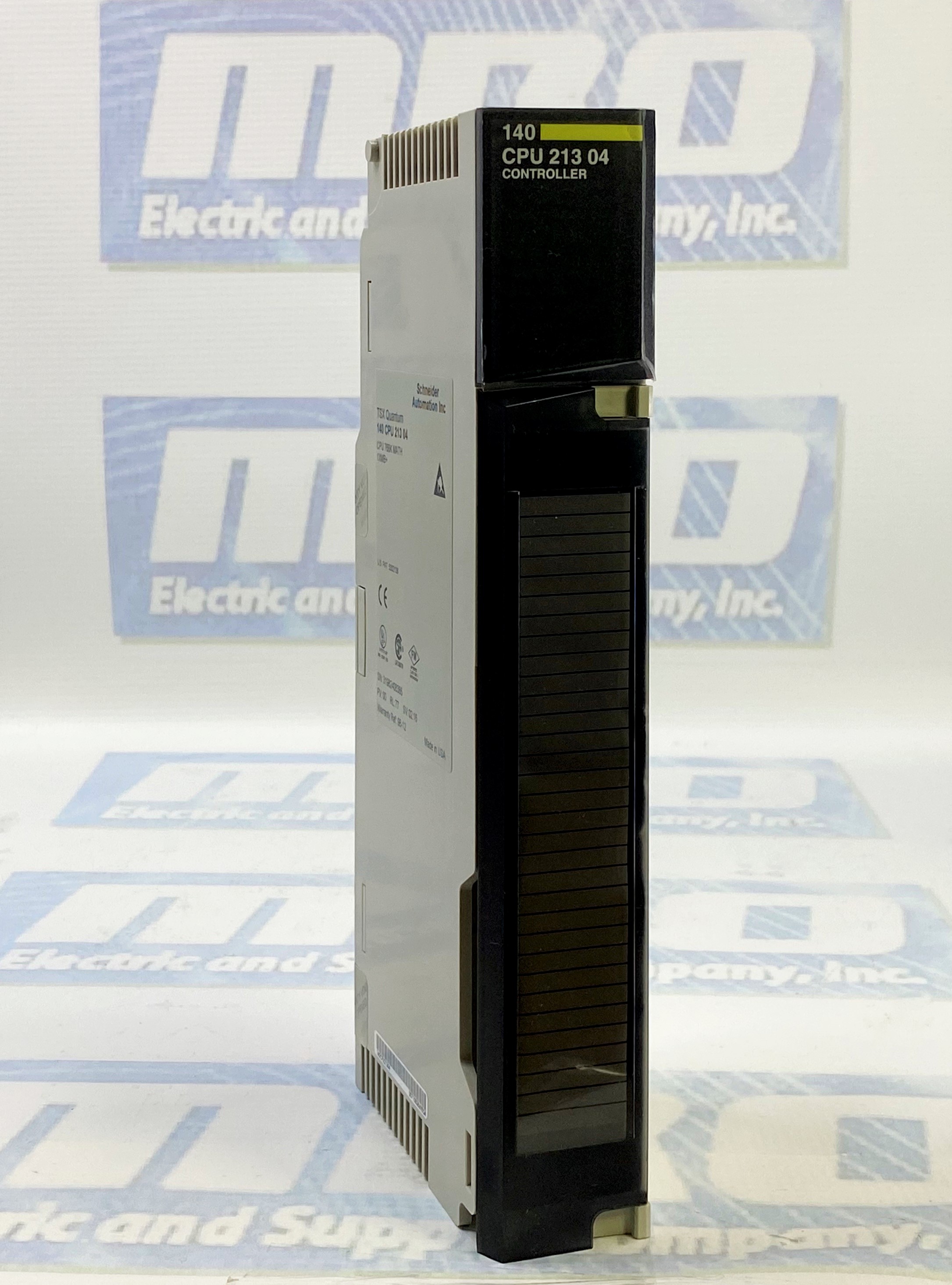

The Modicon 140 CPU 213 04 is a Quantum CPU module manufactured by Schneider Electric for use on the Quantum Automation System. The CPU module 140 CPU 213 04 works on the Quantum local I/O backplane. These products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry CPUs from other manufacturers such as Modicon and ABB.

What is the 140 CPU 213 04 CPU? The 140 CPU 213 04 is a digitally operating electric system. To store the user instruction, it uses a programmable memory that is internally stored. What is the 140 CPU 213 04 able to do with the internally stored user instruction? The Modicon 140 CPU 213 04 is able to carry out specific instructions such as logic, process sequencing, timing, coupling, and arithmetic.

The functions listed above allow you to control various types of machines and processes. The Quantum system does this through digital and analog outputs.

What does the CPU do? The Quantum CPU is the bus master. The bus master controls the entire Quantum system including the local, remote, and distributed I/O of the system.

Features of the 140 CPU 213 04

The Modicon 140 CPU 213 04 is a controller module with CPU 768 K RAM, MATH, Modbus Plus, and Max IEC Program 606 K. This module allows for any mix of 64 k discrete. The 140 CPU 213 04 has a max of 64 in and 64 out words on the local I/O backplane. The max number of I/O racks is 2 which requires an extender. For remote I/O, the 140 CPU 213 04 has a max of 64 in and 64 out words per drop. The max number of remote drops is 31 for the 140 CPU 213 04. The distributed I/O has a max of 3 networks per system. The max number of words per network is 500 in and 500 out, with the max words per node being 30 in and 30 out. The watchdog timer is 250 ms which is software adjustable. The logic solves time for the Modicon 140 CPU 213 04 control module is 0.3 ms / k to 1.4 ms / k.  The battery for this unit is a 3 V lithium battery with a service life of 1200 mAh and a shelf life of 10 years with a 5% loss of capacity per year. When the battery loads current (with at power off) is typically 5 μA with a max of 110 μA. The Modicon 140 CPU 213 04 has one serial Modus RS-232 port (9-pin D-shell). It has 1 network Modbus Plus (RS-485) port (9-pin D-shell). The bus current required is 900 mA and the power dispensation of 4.5 W. There is a time-of-day clock (+/- 8.0 seconds/day 0 ... 60° C). The max number of modules (any combination) of NOM, NOE, and MMS modules.
