Schneider Electric 140CPS52400

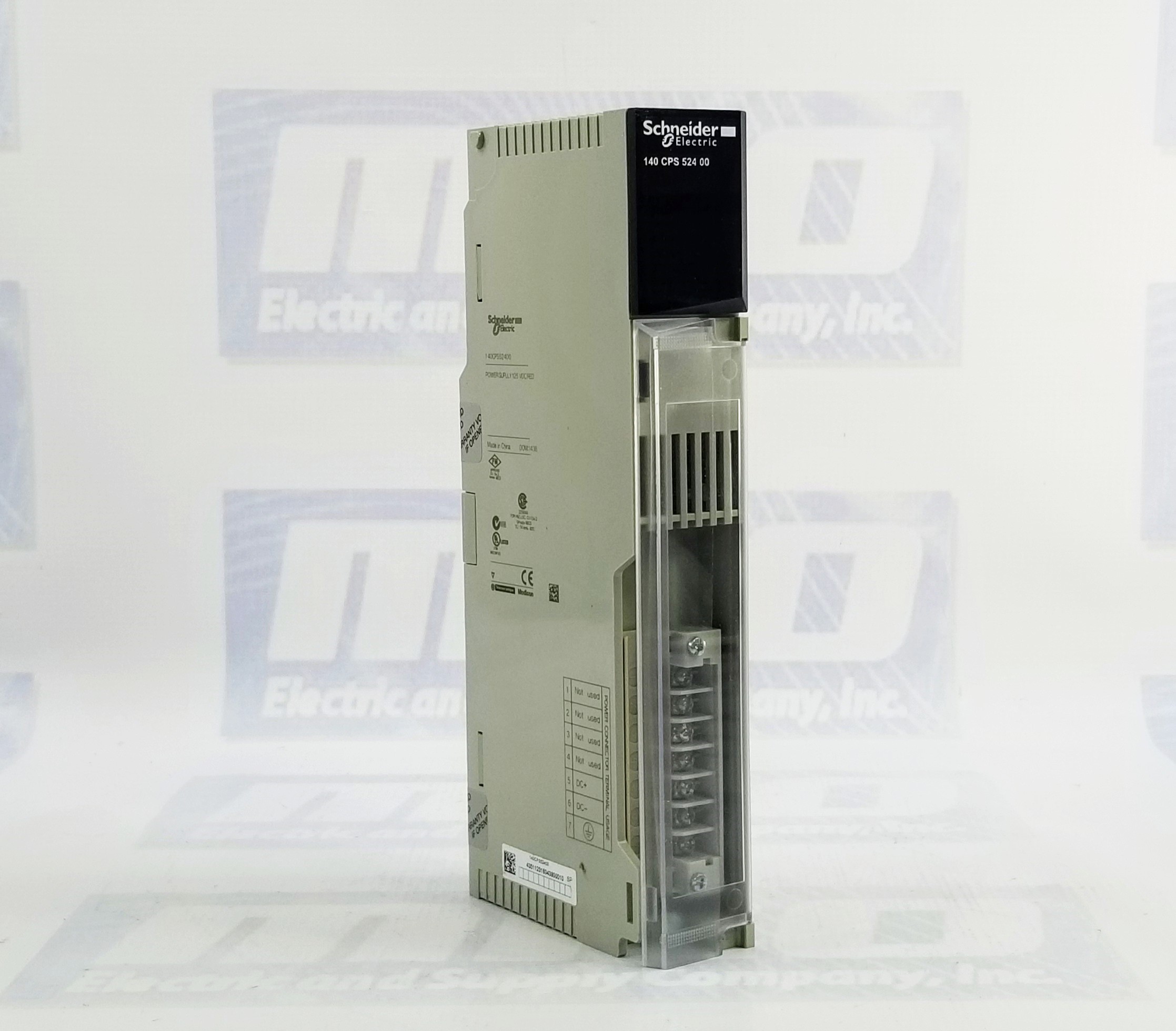

Schneider Electric 140CPS52400 Power Supply

The Schneider Electric 140CPS52400 is a reliable, high-performing, redundant power supply designed for industrial automation applications. Part of the Modicon Quantum series, it ensures seamless and uninterrupted power delivery, making it ideal for critical systems that require a stable and consistent power source. With robust features and internal protection mechanisms, the 140CPS52400 is engineered to meet the rigorous demands of industrial environments.

Input and Output Specifications

The 140CPS52400 operates on an input voltage of 125 V DC, with an acceptable range of 100 to 150 V DC. This broad range allows it to adapt to varying power conditions, providing flexibility and stability in operations. It consumes an input current of 500 mA at 125 V DC, making it energy-efficient and suitable for systems requiring constant and reliable power input.

This model can manage inrush currents of up to 28 A at 125 V during startup, offering protection against power surges that can occur when the unit is first powered on. In addition, it has a power interruption tolerance of less than one millisecond, ensuring that brief power interruptions do not affect the system's overall performance. This feature is essential for industrial applications where even minor power fluctuations could lead to system failures or downtime.

Output and Protection Features

The 140CPS52400 provides a steady output voltage of 5.1 V DC, ideal for powering various industrial control systems. Its redundant power configuration ensures it can supply an output current of 8 A, making it suitable for applications requiring continuous power without disruptions. This redundancy feature is crucial in ensuring that even if one power source fails, the system remains operational with the backup power source.

Schneider Electric has built-in internal overvoltage and overload protection to safeguard the power supply and connected devices from damage caused by power surges or excessive current. This protection ensures that the system remains stable and operational, even under fluctuating power conditions, minimizing the risk of equipment failure and prolonging the lifespan of the power supply and the connected devices.

Power Dissipation and Efficiency

The 140CPS52400's power dissipation is calculated using the formula 6 + (1.5 x Iout), where Iout is the output current in amperes. This allows the power supply to maintain efficient usage while minimizing energy loss and reducing operational costs. By keeping power dissipation within optimal limits, the unit ensures that it operates efficiently without unnecessary power waste.

Local Signaling and Monitoring

The 140CPS52400 is equipped with a local signaling feature, which includes a green LED labeled "PWR OK." This LED provides a clear visual indicator of the unit's operational status, allowing operators to quickly and easily verify that the power supply is functioning correctly. This feature simplifies monitoring and troubleshooting, helping to reduce system downtime and improve overall productivity.

Certifications and Warranty

The 140CPS52400 carries a CE marking, which indicates that it meets European safety and environmental standards. This certification ensures the power supply complies with stringent regulatory requirements, making it a reliable choice for various industrial applications.

Additionally, MRO Electric and Supply offer a two-year warranty on the 140CPS52400, giving customers confidence in the product's durability and long-term performance. Free shipping is also available, making this power supply a convenient and cost-effective option for businesses seeking high-quality power solutions.

FAQs

What is the input voltage range for the Schneider Electric 140CPS52400?

This power supply's input voltage range is 100 to 150 V DC, and its nominal operating voltage is 125 V DC.

What is the maximum output current of the 140CPS52400?

The power supply delivers a maximum output current of 8 A in a redundant configuration.

Does the 140CPS52400 have built-in protection features?

It features internal overvoltage and overload protection to safeguard the power supply and connected devices from potential power-related damage.

How is power dissipation calculated for this unit?

Power dissipation is calculated using the formula 6 + (1.5 x Iout), where Iout is the output current in amperes. This ensures energy efficiency while minimizing power loss.

Does the unit have a local signaling feature?

Yes, the 140CPS52400 includes a green "PWR OK" LED, which makes it easy to monitor the power supply’s operational status.

Is the 140CPS52400 CE certified?

The power supply is CE-marked, ensuring compliance with European safety and environmental regulations.

What warranty is provided for this power supply?

MRO Electric and Supply offers a two-year warranty on the 140CPS52400 and free shipping.
