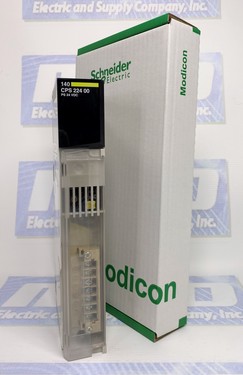

MODICON QUANTUM POWER SUPPLY MODULE - 24 V DC 20..30 V - REDUNDANT
| Part Number | 140CPS22400 |
| Manufacturer | Schneider Electric |
| Type | Power Supplies |
| Model # | 140-CPS-224-00 |
| Warranty | 2 Year |
| Module format | Standard |
| Power supply type | Redundant |
| Input voltage | 24 V DC 20...30 V |
| Input current | <= 3800 mA |
| Inrush current | 25 A 24 V |
| 14 A 20 V | |
| Input power interruption | 1 ms 20 V |
| <= 100 ms | |
| Associated fuse rating | 5 A slow-blow |
| Output voltage | 5.1 V DC |
| Power supply output current | 8 A redundant |
| Output overvoltage protection | Internal |
| Output overload protection | 2.3 x maximum rated input voltage for 1.3 ms |
| Power dissipation | 6 + (1.8 x Iout) where Iout is in A |
| Alarm output | 1 NC 6 A 220 V power supply fault |
| Local signalling | 1 LED green power (PWR OK) |
| Marking | CE |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed 140CPS22400 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this 140CPS22400 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty 140CPS22400, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped today?
Ask about exchanging your faulty 140CPS22400 for credit when ordering from MRO Electric
Overview of the Modicon Quantum 140CPS22400
The 140CPS22400 stands as a critical component within the Modicon Quantum automation platform, specifically designed as a redundant power supply module. This module ensures a reliable and uninterrupted power source, operating at 24 V DC with a broad input voltage range of 20 to 30 V.
As a redundant power supply module, the 140CPS22400 exhibits robust power capabilities. It operates with an input voltage of 24 V DC, drawing an input current of 3800 mA. The inrush current, crucial during start-up, ranges from 14 A at 20 V to 25 A at 24 V. In the event of a power interruption lasting 100 ms, the module can sustain an inrush current of 14 A at 20 V for 1 ms. The associated fuse rating is set at 5 A with a slow-blow characteristic.
The power supply module delivers a stable output voltage of 5.1 V DC, with a redundant output current capability of 8 A. Internal safeguards include output overvoltage protection, ensuring the longevity and reliability of connected systems. The module dissipates power efficiently, with a formula of 6 + (1.8 x Iout), where Iout represents the output current in amperes.
Safety features include an alarm output in the form of 1 NC (Normally Closed) relay with a 6 A capacity, signaling a 220 V power supply fault. Local signaling for power (PWR OK) is facilitated through a green LED, providing instant visual feedback on the module's operational status.
Adhering to stringent environmental standards, the 140CPS22400 holds certifications such as UL 508, CSA C22.2 No 142, FM Class 1 Division 2, and cUL. It boasts resistance to electrostatic discharge, with ratings of 4 kV contact and 8 kV on air according to IEC 801-2. Additionally, the module demonstrates resilience against electromagnetic fields with a rating of 9.14 V/m (10 V/m) from 80 to 2000 MHz, by IEC 801-3. Operational temperatures range from 32 to 140 °F (0 to 60 °C), with a storage temperature span of -40 to 185 °F (-40 to 85 °C). The module maintains relative humidity levels at 95% without condensation and is capable of operating at altitudes up to 16404.2 ft (5000 m).
The 140CPS22400 is not just a powerhouse; it's also environmentally responsible. Proactively compliant with the EU RoHS Directive and declared mercury-free, it aligns with global environmental regulations. The module is also in compliance with China RoHS regulations, providing exemption information and offering a detailed circularity profile for end-of-life disposal in line with WEEE regulations.
What is the primary function of the Schneider Electric 140CPS22400 power supply?
The 140CPS22400 is a redundant power supply designed for critical industrial applications where uninterrupted power is essential. It ensures reliable power delivery even in the event of primary supply failures.
What is the input voltage range for this power supply?
The input voltage range is between 20 and 30 V DC, with a nominal input voltage of 24 V DC.
What is the maximum input current for the 140CPS22400?
The input current can reach up to 3800 mA under normal operating conditions.
Does the power supply have protection features?
Yes, the 140CPS22400 has both internal overvoltage protection and output overload protection. The overload protection is triggered if the input voltage exceeds 2.3 times the maximum rated voltage for more than 1.3 milliseconds.
How does the power supply handle inrush current?
At 24 V, the inrush current is 25 A, and at 20 V, it is 14 A. These short bursts of high current occur when the device is first powered on, ensuring a smooth startup without damaging the system.
What happens during an input power interruption?
The 140CPS22400 can handle up to 100 milliseconds of interruptions, ensuring that brief power fluctuations or losses don’t affect connected devices.
What is the output voltage and maximum output current?
The output voltage is 5.1 V DC, and the unit can deliver a maximum output current of 8 A when operating in redundant mode.
How is power dissipation calculated for this model?
Power dissipation is calculated using the formula 6 + (1.8 x Iout), where Iout represents the output current in amperes.
Is there any visual indication of the power supply’s status?
Yes, the power supply features a green LED labeled "PWR OK," which indicates that the unit functions correctly.
Does the power supply have an alarm output?
It includes an alarm output with a normally closed (NC) contact rated at 6 A and 220 V, which signals a power supply fault.
What safety standards does the 140CPS22400 adhere to?
The CE-marked unit indicates compliance with European safety, health, and environmental standards.
Is there a warranty included with the purchase of the 140CPS22400?
Yes, MRO Electric and Supply offer a two-year warranty and free shipping with the purchase.
