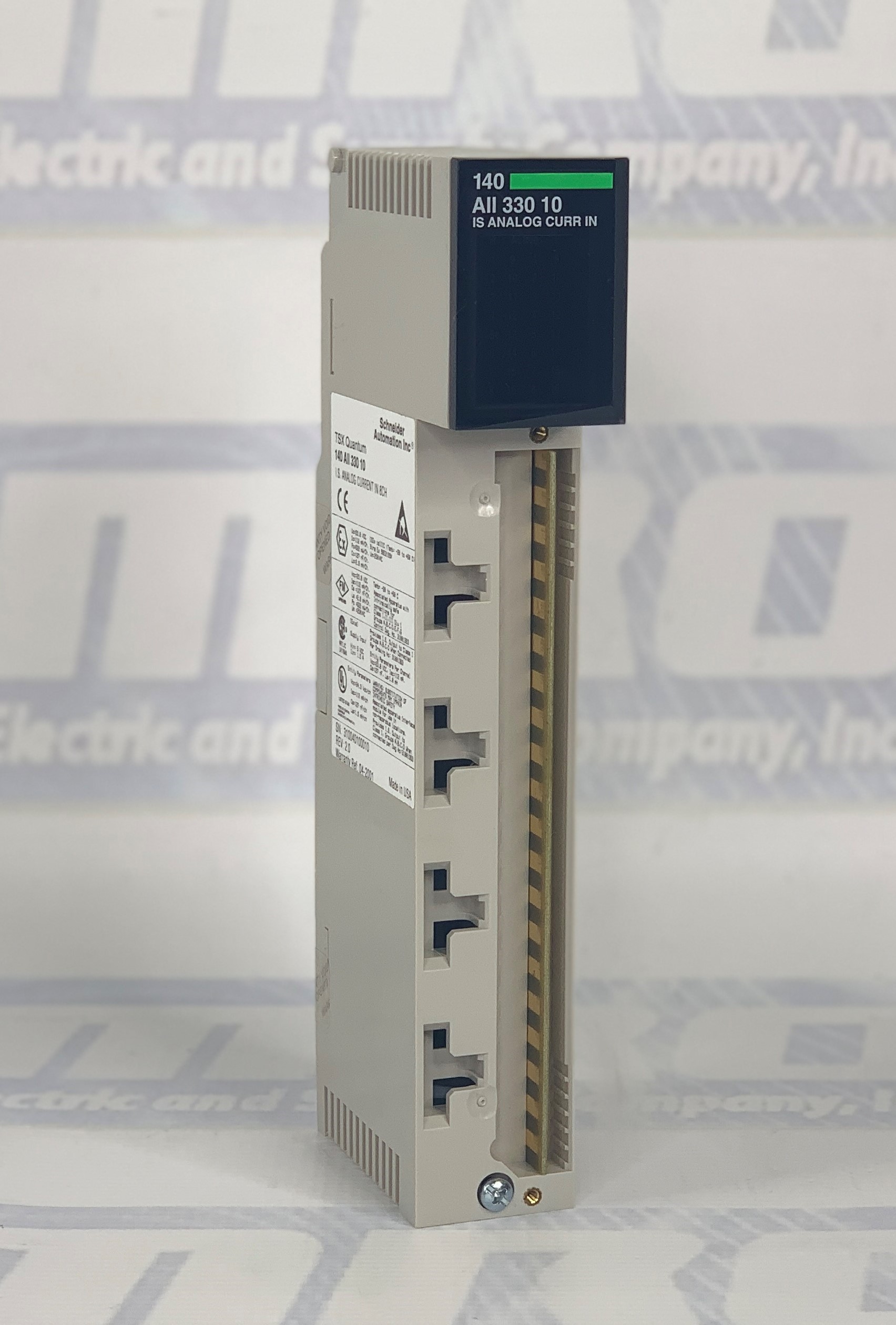

Schneider Electric 140AII33010 I/O Module Overview

The Schneider Electric 140AII33010 is an advanced I/O (Input/Output) module for seamless integration into industrial automation systems. Offering precise analog input capabilities and robust performance, this module enhances the functionality and efficiency of control systems.

Software Compatibility:

Compatible with Concept version V2.2 and above and ProWORX Unity Pro software, the 140AII33010 module ensures seamless integration and ease of programming, allowing for flexible configuration and customization according to specific application requirements.

Single Low Pass Input Filter:

Equipped with a single low-pass input filter with a -3 dB cutoff frequency of 15 Hz +/—20%, the module provides effective filtering to eliminate noise and ensure accurate analog signal acquisition in industrial environments.

Destination Zone Flexibility:

Designed to be deployed in Zone 20, 21, or 22 hazardous areas, the 140AII33010 module offers installation flexibility. It can be used in different industrial zones while maintaining compliance with safety standards.

Analog Input Channels:

Featuring eight analog input channels, the module enables the simultaneous monitoring of multiple analog signals, providing comprehensive data acquisition capabilities for monitoring and control applications.

Input Range and Resolution:

The module supports multiple input ranges, including 0-20 mA, 0-25 mA, and 4-20 mA, with corresponding input resolutions tailored to each range to ensure accurate signal measurement within the specified operating range.

Max Input and Impedance:

With an internally limited maximum input of 25 mA, the module offers robust protection against overcurrent conditions, safeguarding both the module and connected equipment. Additionally, 100 Ohm +/—0.1% input impedance ensures precise signal transmission and measurement accuracy.

Fault Detection and Power Dissipation:

Equipped with fault detection capabilities for identifying broken wire conditions in 4-20 mA circuits, the module enhances system reliability by warning of potential faults early. With a power dissipation of 7.5 W, the module optimizes energy efficiency while delivering reliable performance.

Certifications and Standards:

The 140AII33010 module is compliant with various industry standards, including Directive ATEX 94/9/EC, EN 50039, CSA C22.2 No 142, EN 50014, EN 50020, EN 50284, EN 50281-1-1, and UL 508, ensuring adherence to safety and performance requirements in hazardous environments.

Frequently Asked Questions

Q: What is the Schneider Electric 140AII33010 I/O module? A: The Schneider Electric 140AII33010 is an Input/Output (I/O) module designed for integration into industrial automation systems. It allows for analog input signal acquisition and provides essential functionality for monitoring and control applications.

Q: What software is compatible with the 140AII33010 module? A: The 140AII33010 module is compatible with Concept version V2.2 and above, as well as ProWORX Unity Pro software. This compatibility ensures seamless integration and easy programming for configuration and customization according to specific application needs.

Q: What are the key features of the 140AII33010 module? A: The key features of the 140AII33010 module include a single low pass input filter for noise elimination, flexibility in destination zones (Zone 20, 21, or 22), eight analog input channels, support for multiple input ranges, fault detection for broken wire conditions, and compliance with various industry standards for safety and performance.

Q: What applications is the 140AII33010 module suitable for? A: The 140AII33010 module is suitable for various industrial applications requiring analog input signal acquisition and monitoring. It can be used in manufacturing, process control, utilities, and more industries, where precise measurement and control of analog signals are essential.

Q: What certifications does the 140AII33010 module have? A: The 140AII33010 module is compliant with Directive ATEX 94/9/EC, EN 50039, CSA C22.2 No 142, EN 50014, EN 50020, EN 50284, EN 50281-1-1, and UL 508 standards. These certifications ensure the module meets safety and performance requirements for operation in hazardous environments.
