The Voltage Sensing Module VSM10 is integrated in chassis format AIMs but may also be used to improve booksize ALMs compensation for fluctuations in the supply voltage. An Active Interface Module (AIM) is essential for the operation of an ALM. The AIM contains a reactor and filter to ensure compliance with category C3 (EN 61800-3) EMC regulations. An additional EMC filter is available for booksize modules to restrict emissions to within limits set by category C2(EN 61800-3) EMC regulations – however, a TN supply is required. The VSM10 provides a feed forward control signal of the actual supply voltage rather than requiring the ALM to detect and then react to any fluctuations in the DC bus. It  is used to operate a permanent-magnet synchronous machine without encoder with the requirement for switching to a machine which is already running (flying restart function).

The VSM10 features the following interfaces:

• 1 connection for direct voltage sensing up to 690 V
• 1 connection for voltage sensing using voltage transformers, maximum voltage 100 V
• 1 temperature sensor input (KTY84‑130 or PTC)
• 1 DRIVE-CLiQ socket
• 1 connection for the electronics power supply via the 24 V DC supply connector
• 1 plug-in jumper for either grounded (delivery state) or isolated measurement
• 1 PE connection

The status of the VSM10 Voltage Sensing Module is indicated by a two-color LED. The VSM10 Voltage Sensing Module can be snapped onto a TH 35 mounting rail according to EN 60715 (IEC 60715). Below is a wiring diagram for the the VSM10:

Has your VSM10 module failed? As with all of our services, our repairs come with a 12 month guarantee. Our repair service is based on doing the right job, and getting your part back to you as soon as possible. Every part we refurbish is tested to make sure they work the way they are supposed to. Our factory-trained technicians have many years working with Siemens products.

For a free VSM10 repair quote, please email sales@mroelectric.com or call 800-691-8511.  For more information on our Siemens repair capabilities, you can visit our Siemens Repair page.

Thanks to their modular design, SINAMICS G120 inverters can be used in a wide range of
applications with respect to functionality and power. Each Siemens SINAMICS G120 inverter comprises a Control Unit and a Power Module. The power range extends from 0.37 kW to 250 kW.  Depending on the Power Module used, the energy released in regenerative mode is either fed back to the supply system (Efficient Infeed Technology) or stored in the DC link and/or fed to an external braking resistor. The Siemens SINAMICS G120 system  leverages its strengths in general machinery construction, as well as in the automotive, textile and packaging industries. Choosing the SINAMICS G120 series provides the following advantages:

• Wide range of power ratings
• Available in low/medium voltage modules as well as DC versions
• Simple coupling to SINAMICS control systems for seamless automation integration
• Standard and unified functionality resulting from common software and hardware

CU230 Part Numbers:

• CU230P-2 PN – 6SL3243-0BB30-1FA0
• CU230P-2 DP – 6SL3243-0BB30-1PA3
• CU230P-2 HVAC – 6SL3243-0BB30-1HA3

CU240 Part Numbers:

• CU240B-2 – 6SL3244-0BB00-1BA1
• CU240B-2_DP – 6SL3244-0BB00-1PA1
• CU240E-2 – 6SL3244-0BB12-1BA1
• CU240E-2_DP – 6SL3244-0BB12-1PA1
• CU240E-2_DP_F – 6SL3244-0BB13-1PA1
• CU240E-2_F – 6SL3244-0BB13-1BA1
• CU240E-2_PN – 6SL3244-0BB12-1FA0
• CU240E-2_PN_F – 6SL3244-0BB13-1FA0
• CU240S – 6SL3244-0BA20-1BA0
• CU240S_PN – 6SL3244-0BA20-1FA0
• CU240S_DP – 6SL3244-0BA20-1PA0
• CU240S_DP_F – 6SL3244-0BA21-1PA0

CU250 Part Numbers:

• CU250S-2_DP – 6SL3246-0BA22-1PA0
• CU250S-2_PN – 6SL3246-0BA22-1FA0

Each SINAMICS G120 inverter comprises a Control Unit and Power Module. In the SINAMICS G120 range, the Control Units can be combined with any power module. The Control Unit is able to monitor and control the power supply module. Communication is possible between both local and centralized control modules as well as other monitoring devices.

Has your G120 Series SINAMICS module failed? As with all of our services, our repairs come with a 12 month guarantee. Our repair service is based on doing the right job, and getting your part back to you as soon as possible. Every part we refurbish is tested to make sure they work the way they are supposed to. Our factory-trained technicians have many years working with Siemens products.

For a free repair quote and CU230, CU240 and CU250 drives, please email sales@mroelectric.com or call 800-691-8511.  For more information on our Siemens repair capabilities, you can visit our Siemens Repair page.

Siemens SINAMICS SL150 cycloconverter with thyristor stacks are the optimum choice when it comes to continuously controlling the speed of high-rating induction and synchronous motors with a high torque and low stator frequencies. They are implemented as three-phase thyristor bridges in a 6 or 12-pulse connection. Ideally suited for powering mine winders, conveyors, grinding mills and excavators due to is rugged design. The SL150 part number is 6SL3055-0AA00-6AB0.

What are some of the benefits of running an SL150?

• Available with both air and water cooling
• Power rating up to 36 MW
• Incredibly efficient
• 2 x 6-pulse parallel connections
• 200% overload capability up to 60 seconds
• Easy integration
• Almost maintenance-free

Siemens SINAMICS SL150 is the perfect addition to make existing systems and old plants feel brand new again. The closed-loop control makes this machine a reasonably priced and very efficient retrofit solution.  This Siemens technology has existed and been improved on for 35 years now. There have been over 700 different variations of these machines throughout the years and that alone proves the dependability and versatility of using these machines. Simple operator control and monitoring allows for easy and seamless integration into your existing setup. Diagnostics are even available remotely over secure internet connections so you can get support anywhere, fast. Increase your efficiency and save your money by visiting our website to get a quote on 6SL3055-0AA00-6AB0.

Has your SL150 failed? As with all of our services, our repairs come with a 12 month guarantee. Our repair service is based on doing the right job, and getting your part back to you as soon as possible. Every part we refurbish is tested to make sure they work the way they are supposed to. Our factory-trained technicians have many years working with Siemens products.

For a free SL150 repair quote, please email sales@mroelectric.com or call 800-691-8511.  For more information on our Siemens repair capabilities, you can visit our Siemens Repair page.

The AOP30 is an operator panel with graphical display/membrane keyboard and has a part number of 6SL3055-0AA00-4CA5. The device can be installed in a cabinet door which is between 2 mm and 4 mm thick. It is an input/output device for converters of the SINAMICS series, preferably for cabinet installation. The AOP30 includes the following features:

• Graphical backlit LCD display for plain text display and a bar display of process variables
• LEDs for display of the operating states
• Help function describing causes of and remedies for faults and alarms
• Keypad for operational control of a drive
• Local/remote switchover for selecting the operating location
• Numeric keypad for input of setpoint or parameter values
• Function keys for guided navigation in the menu
• Two-stage safety concept to protect against accidental or unauthorized changes to settings
• Front panel with degree of protection IP55

The current operating states, setpoints and actual values, parameters, indices, faults and alarms are displayed on the display panel. Desired language must be downloaded to the AOP30 prior to commissioning. If just one CU320‑2 Control Unit controls several power units (multi-motor drives) in the SINAMICS S120 drive system, the parameters, alarms and faults of all the connected devices can be simultaneously displayed and processed on the AOP30 Advanced Operator Panel.

The AOP30 Operator Panel can be used for the following activities:

• • Parameterization

• • Monitoring status variables

• • Controlling the drive

• Diagnosing faults and alarms

Has your AOP30 module failed? As with all of our services, our repairs come with a 12 month guarantee. Our repair service is based on doing the right job, and getting your part back to you as soon as possible. Every part we refurbish is tested to make sure they work the way they are supposed to. Our factory-trained technicians have many years working with Siemens products.

For a free AOP30 repair quote, please email sales@mroelectric.com or call 800-691-8511.  For more information on our Siemens repair capabilities, you can visit our Siemens Repair page.

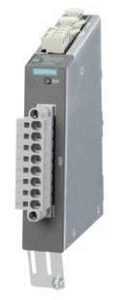

Terminal Modules are used to add further input and output interfaces to the S120 drive system. Terminal Modules are connected to the Control Unit using DRIVE-CLiQ.  DRIVE-CLiQ is a proprietary networking system by Siemens that aims to prevent packet loss and removes some of the collision handling capability. This allows for a high speed deterministic system, but also means that the protocol is not suitable for wireless or slip-ring communication. The TM120 module is used in evaluating temperatures. The temperature is monitored for the following sensors:

• PT100
• PT1000
• KTY84
• Bimetallic NC contact

The TM150 features 2 DRIVE-CLiQ interfaces, 4 temperature sensor inputs, and one power supply.

The part number for the Siemens SINAMICS TM120 terminal module is 6SL3055-0AA00-3KA0.

The SINAMICS TM120 is just one of many additional components that are available for S120 systems. These control units significantly reduce system costs, as they increase functionality for positioning, safety integration, and drive control allowing all these functions to be controlled by one unit versus several. There is also additional flexibility with a high number of programming options and digital inputs. With up to 12 binary inputs, the modules’ high I/O count add ease of use. The additional Ethernet port expands programming options as well.

Does your Siemens SINAMICS TM120 module need to be serviced? As with all of our services, our repairs come with a 12 month guarantee. Our repair service is based on doing the right job, and getting your part back to you as soon as possible. Every part we refurbish is tested to make sure they work the way they are supposed to. Our factory-trained technicians have many years working with Siemens products. Minimize your future downtime today by contacting MRO Electric and Supply right now.

MRO Electric stocks new and refurbished TM120 modules. If you would like a replacement module, please call 800-691-8511 or email sales@mroelectric.com.

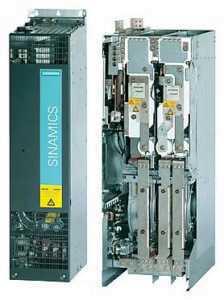

The CU130 is an S120 single axis control unit capable of controlling PM340 Power Modules. It clips onto the front of the power module and must be used in conjunction with this. The two versions of the CU130 that were released included the CU130 DP PROFIBUS interface and the CU130 PN PROFINET interface. The respective part numbers include:

• CU130 DP – 6SL3310-1GE36-1AA3
• CU130 PN  – 6SL3040-1GA01-1AA0

All SINAMICS versions are based on a platform concept. Joint hardware and software
components, as well as standardized tools for design, configuration, and commissioning
tasks ensure high-level integration across all components. SINAMICS handles a wide variety of drive tasks with no system gaps. Different SINAMICS versions can be easily
combined with each other.

The following system components are available:

• Line-side power components, such as fuses, contactors, reactors, and filters
• Line Modules, which supply power centrally to the DC link
• DC-link components (optional), which stabilize the DC-link voltage
• Motor Modules, which act as inverters, receive power from the DC link, and supply the connected motors

SINAMICS is a new series of drives from Siemens designated for the following mechanical and plant engineering applications:

• Simple pump and fan applications
• Complex individual drives in centrifuges, presses, extruders, elevators, as well as
  conveyor and transport systems
• Drive line-ups in textile, plastic film, and paper machines
• Highly dynamic servo drives for machine tools

Depending on the application, the SINAMICS range offers the ideal version for any drive
task.  Users can choose from many different harmonized components and functions to create a solution that best meets their requirements. MRO Electric and Supply has all of your Siemens needs including SINAMICS, SIMODRIVE, and SINUMERIK modules.

MRO Electric stocks both new and refurbished CU130 Control Units, which is part number 6SL3310-1GE36-1AA3. If you would like to purchase a replacement module, please call 800-691-8511 or email sales@mroelectric.com.
