140CPU43412A: Beyond the User Manual

Joe Kaminski Leave a comment
The Quantum 140CPU43412A CPU is a single-slot programmable controller with built-in executive memory, application memory and communication ports. All memory components are on board so no additional chips or cartridges are necessary.
Quantum CPUs use flash memory technology to support the CPU’s executive memory and instruction set. Flash is a state-of-the-art, nonvolatile memory technology that enables downloadable field upgrades as new features become available.
The application program can be stored in either battery-backed RAM and/or Flash RAM. The battery is located on the front of the CPU and can be serviced while the CPU is running. To protect the application program from inadvertent changes during operation, the 140CPU43412A features a memory-protect switch. An LED goes on when this switch is activated.
The 140CPU43412A CPU has two Modbus® ports and one Modbus Plus™ port. Simple rotary switches on the back of the CPU are used to set the network address of the Modbus Plus port. Each device on a Modbus Plus network must have a unique address in the range 1 … 64.
As an option, modules can be ordered with a conformal coating applied to protect the internal circuitry from corrosive gases such as Chlorine,Nitric Oxide, Hydrogen Sulfide and Sulfur Dioxide.
For more info you can email sales@mroelectric.com or call 1-800-691-8511. Here is where you can find the 140CPU43412A Quantum CPU.
140CPU43412A Diagnosis

Modicon 140CPU53414B CPU – Obsolete

Joe Kaminski Leave a comment

The Schneider Electric Modicon 140CPU53414B CPU is one of the main CPUs of the Quantum Series. It is no long in production from Schneider, but we do still have new and refurbished units available. To make sure this is the CPU is the one for your system we have the notes and overview below.

Overview
– The 140CPU53414B is functionally identical to the non-B version, however the following must be considered:
– If you are using the CPU in a hot standby system, you must use either two non-A versions, two A versions, or two B versions.     – The B version required a new flash exec.
– The B version, A version, and non-A flash execs are not interchangeable.
– Schneider software (Concept, ProWorx, and Modsoft) supports the B version.

CPU Module – The following shows the 140CPU53414B CPU module and its components

The following table shows the specifications for the 140CPU53414B CPU

The following figure shows the LED indicators

The following table shows the run LED error codes for the 140CPU53414B

For more info about the  140CPU53414B along with the other Quantum CPUs we carry you can visit our site here. To get a quote you can email sales@mroelectric.com or call 1-800-691-8511.

Modicon 140CPU43412A CPU Product Video

Joe Kaminski Leave a comment

We currently have both new and refurbished 140CPU43412A CPUs in stock, fully tested and ready to ship out same day if need be. This Modicon 140CPU43412A CPU is one of the more popular CPUs in the Quantum Series from Schneider Electric/Modicon.

Just as a side note, we often get questions as to what the differences between Schneider Electric, Modicon, Square D, and Telemecanique are. Modicon, Square D, and Telemecanique were all bought by Schneider Electric over the years and their products are all now manufactured by Schneider. A full history of the Schneider Electric acquisitions is available on Wikipedia here.

Back to the CPU, if you are looking for the general description or the technical specs, here is a link to the PDF listed on Graybar’s website. The predecessor to this CPU is the 140CPU43412, where the 140CPU43412A is functional identicial to the non-“A” version, the only differences being that if you are using multiple units in a hot standby system you need to use either two 140CPU43412 units or two 140CPU43412A units, and the “A” version has a unique flash executive which isn’t interchangeable. We have another blog post detailing the differences here.

Below we have a video of the product itself to help with anyone who is looking for replacement. For pricing or any other questions give us a call a 800-691-8511 or email sales@mroelectric.com.

Replacing a 140CPU43412 With a 140CPU43412A CPU

Joe Kaminski Leave a comment

140CPU43412A CPU

Replacing a 140CPU43412 With a 140CPU43412A CPU

One of the more common Modicon Quantum CPU modules is the 140CPU43412A CPU module. This unit replaced the 140CPU43412 unit which has since become obsolete. Currently, many systems are being updated so we consistently get questions about 140CPU43412A CPU replacement and what the differences between the two units are, and if they are plug-and-play replacements. To help with this transition, we put together a few notes to help anyone who has questions.

The redesigned unit designated with the “A” at the end is functionally identical to the original non-“A” unit, with a few slight considerations. If you are using this CPU in a hot standby system, you must use matching units, so either two 140CPU43412 units or two 140CPU43412A units. Additionally, the 140CPU43412A version has a unique flash executive, and the two unit’s flash executives are not interchangeable. For the software, all the standard systems (Concept, ProWORX, and Modsoft) support the 140CPU43412A unit, and any 140CPU43412 program will load directly on to the new 140CPU43412A without needing to be changed.

MRO Electric stocks new and refurbished Modicon Quantum parts.  We also provide pre-priced Control Techniques repairs. For more information or to request a quote, please call 800-691-8511 or email sales@mroelectric.com.

Modicon Quantum Product Overview

Joe Kaminski Leave a comment

A modular, flexible architecture and an extensive range of networks and Fieldbus communication devices combine to make Modicon Quantum an ideal automation platform for continuous or semi-continuous industrial processes, as well as for large infrastructures.

The product of more than 25 years experience in the field of redundancy systems, Modicon Quantum is the perfect solution for applications that require high control system availability. This offer is therefore inherently suited to critical applications, such as petrochemicals, metals, cement, energy, tunnels, airports and water treatment. It can be used in many fields from Food & Beverage to the pharmaceutical industry. Certified by TUV Rheinland Group and IEC61508 complaint, some modules of the Modicon Quantum can be used in applications where functional safety is necessary. A configuration which combines functional safety and redundancy is also available.

This automation platform provides unrivalled treatment capacity together with an expandable memory size. It can receive the complete project, deal with very complex data structures, time and date stamping of diagnostics information as well as storage of recipes and traceability of information.

A Modicon Quantum automation platform configuration uses the following product families: Rack, Power supply, Central processing unit, Communication, Input/Output, Analogue, and Metering. The representative configuration selected consists of the following 15 modules mounted on a 16 slot rack 140XBP01600: 140CPU67161, 140CPS11420, 140ACI04000, 140ACO02000, 140ACO13000, 140ATI03000, 140CRP93200, 140DAI54000, 140DDI35300, 140DDI84100, 140DDO35300, 140DRA84000, 140ERT85410, 140NOE77101, 140XBE10000.

The environmental impact of this referenced configurations is representative of the impacts of the other possible configurations for which the same technology is used. The environmental analysis was performed in conformity with ISO 14040 “Environmental management: Life cycle assessment – Principle and framework”. This analysis takes the stages in the life cycle of the product into account.

MRO Electric and Supply has new and refurbished Modicon parts available including the Modicon Quantum series. We also offer repair pricing. For more information, please call 800-691-8511 or email sales@mroelectric.com

Modicon Quantum Interface Modules

Joe Kaminski 1 Comment

The Modicon Quantum series has a variety of communication interface modules which are listed and described below.

RIO Modules (CRA/CRP)

–          Quantum RIO head and drop modules use a S908-based networking I/O configuration. Communication is done via single or dual coaxial cabling u to 15,000 feet away. This configuration supports a mix of the following product lines:

  • SY.MAX
  • 200 Series
  • 500 Series
  • 800 Series
  • Quantum I/O

When Quantum RIO is required, the Modicon Quantum interface modules controller may support up to 31 RIO drops. In an RIO configuration, an RIO head module is connected with a coaxial cable to RIO drop modules at each remote drop.

DIO Module (CRA)

–          Quantum DIO is implemented over a Modbus Plus network. The CPU or NOMs module may be the network head via their Modbus Plus ports. The Quantum DIO Modbus Plus drop adaptors are specifically designed to link Quantum I/O modules to the head via twisted pair shielded cable (Modbus Plus). The DIO drop modules also provide the I/O with power (maximum 3A) from a 24VDC or a 115/230VAC source. Each DIO network supports up to 63 distributed drops using repeaters.

Network Option Module (NOM)

–          Quantum NOM modules provide extended communication capabilities for the Quantum system within a Modbus Plus configuration.

Modbus Plus on Fiber Module (NOM)

–          Quantum Modbus Plus on Fiber modules provides connectivity to Modbus Plus nodes by fiber cable without fiber optic repeaters and allows the creation of a pure fiber optic network or a mixed fiber optic/twisted-pair network (with the use of a 490NRP254 Fiber Optic Repeater).

Ethernet TCP/IP (NOE) Modules

–          Quantum Ethernet TCP/IP modules make it possible for a Quantum controller to communicate with devices on an Ethernet network using TCP/IP – the de facto standard protocol. An Ethernet module may be inserted into an existing Quantum system and connected to existing Ethernet networks via fiber optic or twisted pair cabling.

SY/MAX Ethernet Modules (NOE)

–          Quantum-SY/MAX-Ethernet modules are Quantum CPU network option modules that can be placed in a Quantum backplane to connect to Quantum controllers to SY/MAX devices and applications.

MMS-Ethernet Modules (NOE)

–          Quantum-MMS-Ethernet modules are Quantum CPU network option modules that can be placed in a Quantum backplane to connect Quantum controllers to MMS devices and applications.

InterBus Interface Module (NOA)

–          The Quantum InterBus is the interface module to the InterBus bus. The InterBus bus is a Fieldbus network designed for I/O blocks and intelligent devices used in manufacturing. It offers a master/slave topology that permits deterministic I/O servicing over its 13 km twisted pair network.

LonWorks Modules (NOL)

–          Quantum NOL modules provide connectivity between a Quantum controller and a LonWorks network, based on Echelon’s LonWorks technology. The NOL module is offered in three models for different transceiver types, and supports three twisted-pair media types with different network topologies or data transfer speeds.

Profibus Interface Module (CRP)

–          Quantum Profibus module is the interface module to Profibus-DP networks. The interface modules use Type A, shielded twisted pair to join inline connectors, with or without service ports and bus terminators.

AS-I Interface Module

–          Quantum AS-i modules provide connectivity between a Quantum controller and AS-i networks. AS-i bus cable is an unshielded flat two-wire link on which communication and power are transmitted to connected devices. The media insulation is self-healing to accommodate junction block removal.

MRO Electric and Supply has new and refurbished Modicon Quantum products available. We also offer repair pricing. For more information, please call 800-691-8511 or email sales@mroelectric.com.

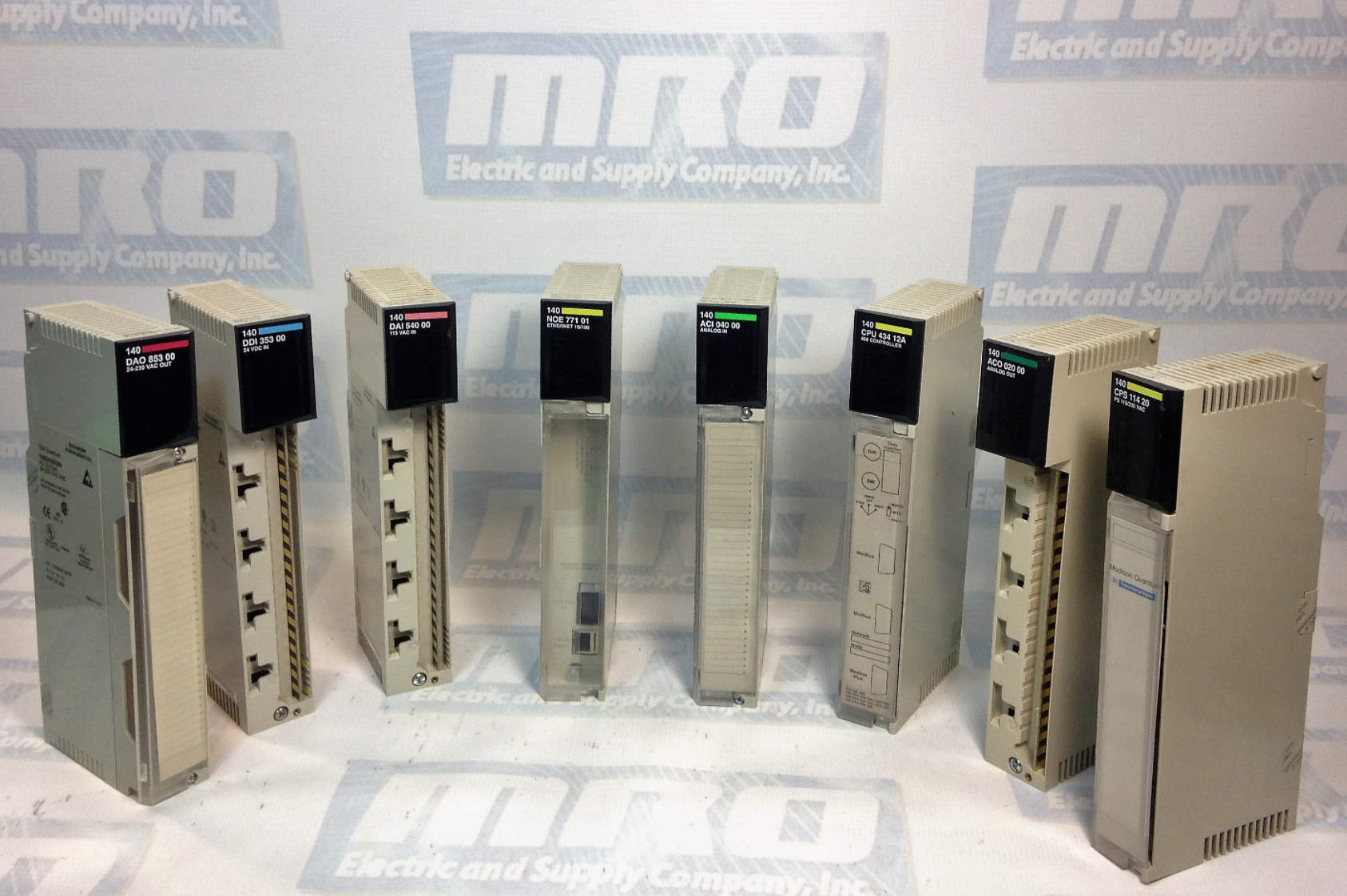

Modicon Quantum Overview: Power Supplies, CPUs, I/O Modules

Joe Kaminski Leave a comment

The Modicon Quantum system is a special purpose computing system with digital processing capabilities. Modicon Quantum is designed for real-time control in industrial and manufacturing applications in a module, expandable architecture employing the following modules.

–          Power Supply

–          CPU

–          I/O

–          I/O Network Interface

–          Intelligent/Special Purpose I/O

–          Simulator (XSM)

–          Battery

–          Backplanes

–          CableFast Cabling

Quantum Power Supplies are used to supply system power to all modules inserted into the backplane, including CPU modules, Interface modules, and I/O modules. Depending upon the system configuration, the option exists of using the power supply in three different modes. The three modes are:

–          Standalone: For 3A, 8A, or 11A configurations that do not require fault tolerant or redundant capabilities.

–          Standalone Summable: For configurations consuming more than the rated current of one supply, two summing power supplies can be installed on the same backplane.

–          Redundant: For configurations requiring power for uninterrupted system operation. Two redundant power supplies are required for redundancy.

The Quantum CPU is a module residing on the Quantum local I/O backplane. The CPU is a digitally operating electronic system, which uses a programmable memory for the internal storage of user interactions. These instructions are used to implement specific functions such as logic, process sequencing, timing, coupling, and arithmetic. These instructions allow control through digital and analog outputs, for various types of machines and processes.  The Quantum CPU serves as a bus master controlling the local, remote, and distributed I/O of the Quantum system.

Quantum I/O modules are electrical signal converters that convert signals to and from field devices to a signal level and format, which can be processed by the CPU such as limit switches, proximity switches, temperature sensors, solenoids, and valve actuators. All I/O modules are optically isolated to the bus, ensuring safe and trouble-free operation. All I/O modules are also software configurable.

MRO Electric and Supply has new and refurbished Modicon Quantum products available. We also offer repair pricing. For more information, please call 800-691-8511 or email sales@mroelectric.com.
